DP AEROVA 15000 RPM Air Classifier
DP AEROVA 15000 RPM Air Classifier
SKU:DPA-54a36f
High-efficiency air classifier for precise material classification.
Regular price
$8,900.00
Regular price
Sale price
$8,900.00
Unit price
per
Initiate Order
DP AEROVA 15000 RPM Air Classifier
$8,900.00
Quantity: 1
Claim Your Seller Account
DP AEROVA 15000 RPM Air Classifier
$8,900.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

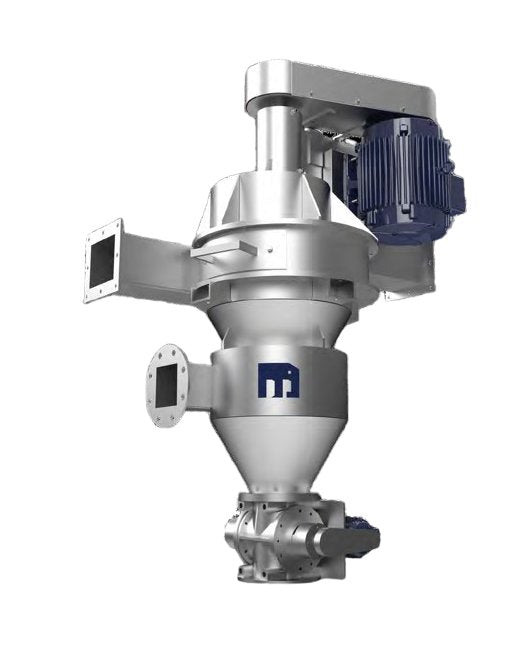

The DP AEROVA 15000 RPM Air Classifier is a high-efficiency solution for classifying dry materials ranging from 1 to 150 microns. With a throughput capacity spanning from 5 kgs per hour to 10 tonnes per hour, this forced-vortex unit can operate as a standalone system or integrate seamlessly within milling setups. Offering precise product output with required fineness, the DP AEROVA Air Classifier is ideal for industries like minerals, chemicals, metal powders, ceramics, plastics, and recycling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
High-efficiency air classifier.Particle size cut-point from 1-150 microns.Precise on-stream control of cut-point by variation of rotor speed and airflow.Low power consumption and Robust construction and build quality for long service life.Adjustable secondary air-wash system for optimisation of classification efficiency.Operates under negative pressure promoting dust-free environment.Can be supplied with a variety of liners and coatings to improve wear resistance.
Note Note
Made in India
Options And Accessories Options And Accessories
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.The internal surfaces of the classifier can be lined with ceramic tiles of various grades.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast lron.The classifying wheel can also be made of wear resistant materials such as ceramic or silicon carbide.
Specifications Main Drive Motor
1.5 to 2 kW
Specifications Maximum Speed
15000 rpm | 220 m³/h
Specifications Pressure Differential
640 mm/SWG
