DP Air Classifier Mill 90 kW
DP Air Classifier Mill 90 kW
SKU:DPA-eb00b4
High-speed air classifier mill for precise particle reduction. Ideal for powder coating, pharma, and food production.
Regular price
$99,999.99
Regular price
Sale price
$99,999.99
Unit price
per
Initiate Order
DP Air Classifier Mill 90 kW
$99,999.99
Quantity: 1
Claim Your Seller Account
DP Air Classifier Mill 90 kW
$99,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

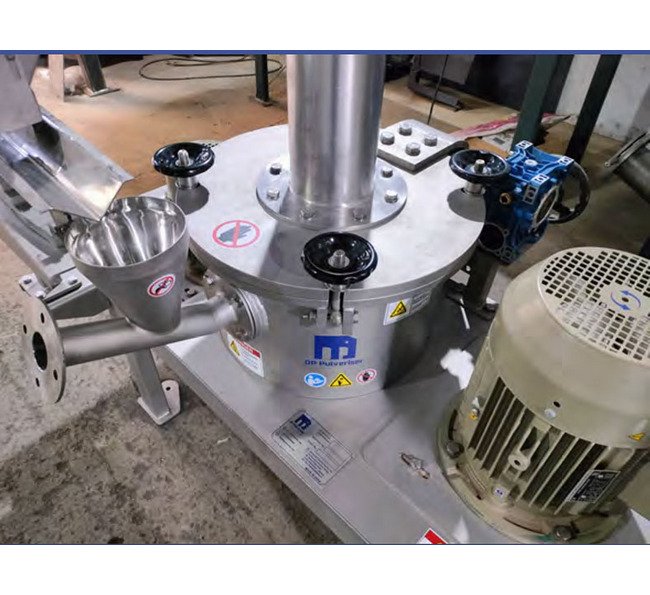

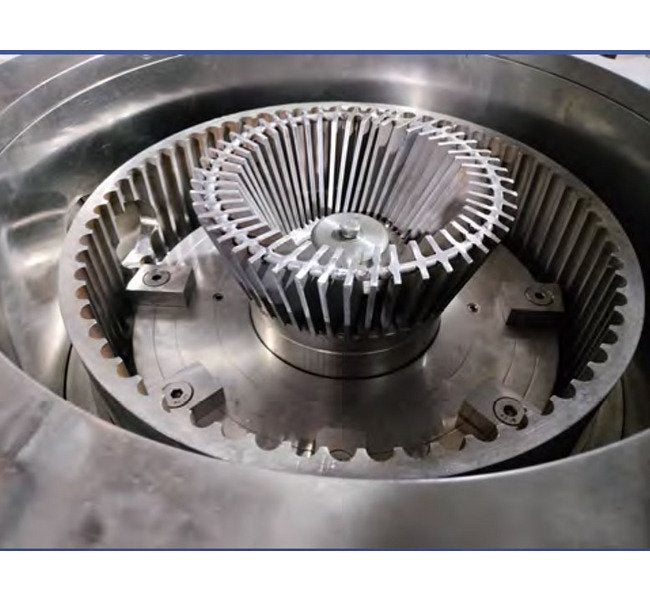

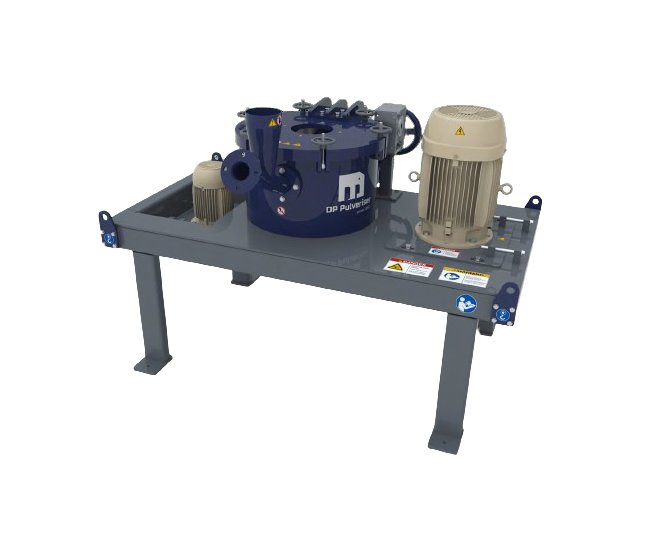

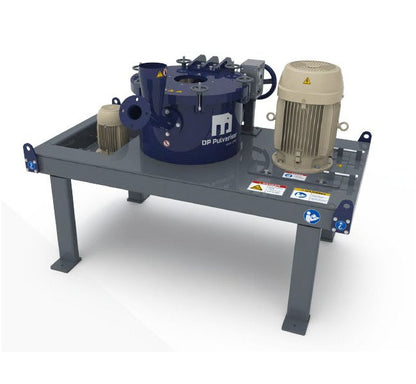

The DP Air Classifier Mill 90 kW is a high-speed vertical hammer mill with an adjustable air classifier, ideal for reducing particles to the 8-40 microns range. It combines grinding and classifying in one machine, tailored for powder coating, pharma, and food production. With easy online particle size adjustment, low energy consumption, and a steep particle size distribution, it's suitable for various applications. The machine offers options such as protein enrichment, cooling technology for heat-sensitive materials, combined grinding, and drying, making it versatile and efficient. Available in different materials for parts and liners, the DP Air Classifier Mill is designed for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast Iron Internal fan available in single or two-piece design Available in external fan design where airflow control is required.Liners available in water jacketed design to provide cooling in the grinding chamber.
Features And Benefits Features And Benefits
Grinding and Classifying in one machine.Tailored for powder coating, pharma and food production.Easy to clean and maintain.Stepless easy online particle size adjustment.Low specific energy consumption.Suitable for combined grinding and drying.Particularly suitable for frequent product changes.Steep particle size distribution.
Note Note
Made in India
Options And Accessories Options And Accessories
Design for coating of mineral powders.Protein enrichment of flours by size reduction and air classification.Airflow cooling technology for heat sensitive materials.Combined drying and pulverising option.Pressure-shock resistant up to PSR 11 bar.Tangential air inlet.
Specifications Air Flow Rate
12950 m³/h
Specifications Classifier Drive
15 kW
Specifications Maximum Classifier Speed 1min
2450 rpm
Specifications Maximum Mill Speed 1min
2950 rpm
Specifications Rotor Drive
90 kW
Specifications Scale Up Factor
10.8 m³/h
