DP CONTRA 30kW Pin Mill
DP CONTRA 30kW Pin Mill
SKU:DPC-76a41c
Powerful 30kW Pin Mill for high-quality powder production in pharmaceuticals, minerals, and chemicals.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
DP CONTRA 30kW Pin Mill
$18,999.99
Quantity: 1
Claim Your Seller Account
DP CONTRA 30kW Pin Mill
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DP CONTRA 30kW Pin Mill is an industrial powerhouse designed for continuous operation. With a housing side motor of 30 kW, it offers high grinding fineness from 10 to 500 microns, making it ideal for processing tough materials like minerals, chemicals, and pharmaceuticals. The pin mill features 2 driven pin discs for precise control over grinding parameters, ensuring gentle processing that preserves the integrity of proteins and starch. Its compact, dust-free design and cryogenic milling capability provide efficient and high-quality powder production, meeting the stringent requirements of various manufacturing sectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
High grinding fineness with low specific energy consumptionIntensive, agglomerate-free and homogeneous mixing-grinding of products.2 driven pin discs for achieving high fineness values in the range of approx. 10 to 500 µm.Individual setting of the grinding parameters-speed, direction of rotation, etc.Gentle grinding which avoids any damage to the protein and starch.Compact design & dust free operation
Note Note
Made in India
Options And Accessories Options And Accessories
Cryogenic operation available with liquid nitrogen.Systems for heat-sensitive materials.Explosion pressure shock proof system.Metal separator.Design for coating of mineral powders.Protein enrichment of flours by size reduction and air classification.
Specifications Door Side Motor
15 kW
Specifications Housing Side Motor
30 kW
Specifications Housing Side Rotor Speed
8350 rpm
Specifications Maximum Air Flow Rate
2350 m³/h
Specifications Rotor Speed Door Side
4500 rpm
Specifications Scale Up Factor
2.5
Working Principles Working Principles

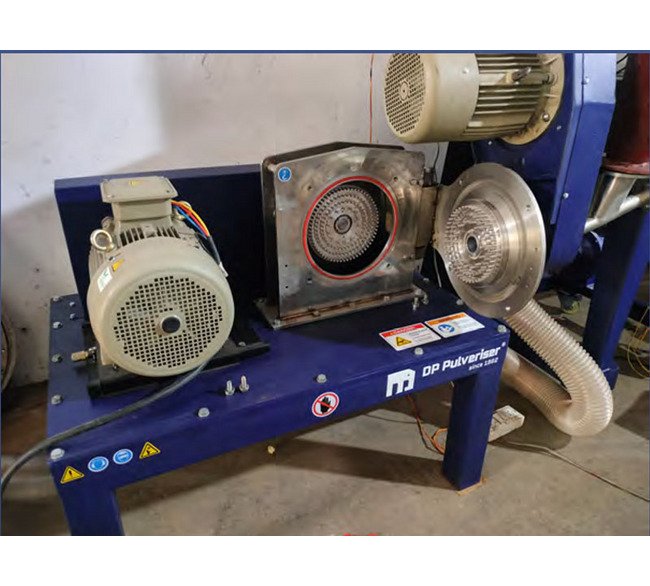

The DP® CONTRA Pin Mill works really well because it has two special rotating discs with pins on them. These discs spin in opposite directions-one on the the machine side,and the other on door side where material feeds into the centre of the mill. the discs are driven at extremely high speed and it can operate at speeds up to 240m/sec at the outermost rows of pins, which is perfect for processing brittle materials, the speed can be adjusted to go slower, allowing for precise control over how finely the material is processed.The big chamber in the mill creates a centrifugal powerful force that helps process materials even if they're wet, oily, sticky, or absorb moisture easily. This ensures everything gets mixed evenly without sticking to the pins or the chamber walls. Also, we can use liquid nitrogen to permit cryogenic milling of heat-sensitive materials such as spices. because of its special ability to use cryogenic milling, this machine can keep almost all of the fragrant oils in spices, up to 97%. It also preserves the fats in the spices, making the powdered spices taste much better and smell more aromatic compared to regular processing methods.Suitable for the requirements of various manufacturing sectors,especially pharmaceuticals, minerals, chemicals, food and drinks, cosmetics, and recycling. It can handle all sorts of materials, from easy to really tough ones, and turn them into high-quality powder without any lumps.
