DP Impact Pulveriser 5000 RPM Mill
DP Impact Pulveriser 5000 RPM Mill
SKU:DPI-616d26
Versatile medium-speed hammer mill for precise grinding from 60 to 300 mesh, ideal for institutional use.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
DP Impact Pulveriser 5000 RPM Mill
$5,999.99
Quantity: 1
Claim Your Seller Account
DP Impact Pulveriser 5000 RPM Mill
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

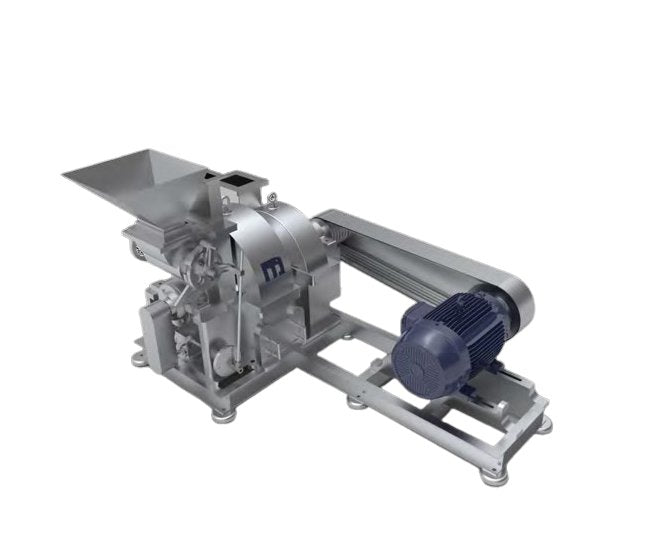

The DP Impact Pulveriser 5000 RPM Mill is a robust medium speed screen-less hammer mill designed for grinding various materials to medium fineness. With an adjustable whizzer classifier, it can achieve particle sizes ranging from 60 mesh to 300 mesh, meeting diverse grinding needs. This all-in-one mill features a single motor drive, durable construction, and versatile operation suitable for continuous duty in harsh environments. Perfect for institutions and industries requiring precise control of powders and efficient pneumatic conveying.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The flexibility of the adjustable gap between the whizzer classifier and the whizzer cone enables precise control of the required output particle size. This allows the same mill to deliver coarse granulation or fine grinding as required with a simple whizzer classifier gap adjustment. The presence of an impeller on the common shaft eliminates the need for an additional external fan for pneumatic conveying of the material out of the grinding chamber.
Features And Benefits Features And Benefits
Grinding and classifying in a single machineCapable of fine reductions down to 50 microns or 300 meshScreen-less classificationDurable long life (Some 1970s and 80s models are still in use today)Adjustable particle size control of powdersIntegrated feeding, classification and pneumatic conveying all run by a single motorAvailable in abrasion resistant design for materials up to 6-7 Mohs hardnessReliable operation due to robust designCool and gentle grinding due to high airflows
Note Note
Made in India
Options And Accessories Options And Accessories
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast iron.Internal fan available in single or two piece designAvailable in external fan design where airflow control is requiredLiners available in water jacketed design to provide cooling in the grinding chamber
Specifications Air Flow Rate
510 m³/h
Specifications Main Drive Motor
5 hp
Specifications Rotor Speed
5000 rpm
Specifications Scale Up Factor
0.25
