DP® AEROVA 3300 RPM Air Classifier

DP® AEROVA 3300 RPM Air Classifier

DPA-cbbc3c

High-efficiency DP® AEROVA Air Classifier for precise material classification. Ideal for various industries. Made in India.

$8,999.99
$8,999.99
Sale

Initiate Order

DP® AEROVA 3300 RPM Air Classifier

DP® AEROVA 3300 RPM Air Classifier

$8,999.99

Quantity: 1

Claim Your Seller Account

DP® AEROVA 3300 RPM Air Classifier

DP® AEROVA 3300 RPM Air Classifier

$8,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

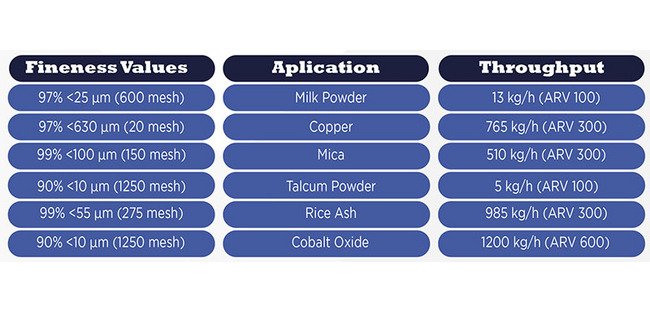

The DP® AEROVA 3300 RPM Air Classifier is a high-efficiency unit designed for classifying dry materials in the 1-150 micron range, offering throughputs ranging from 5 kgs to 10 tonnes per hour. Featuring precise cut-point control, low power consumption, and robust construction, this air classifier ensures accurate product output in industries such as minerals, chemicals, and recycling. With adjustable secondary air-wash system and dust-free operation, it promotes efficiency and longevity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features And Benefits Features And Benefits
High-efficiency air classifier.Particle size cut-point from 1-150 microns.Precise on-stream control of cut-point by variation of rotor speed and airflow.Low power consumption and Robust construction and build quality for long service life.Adjustable secondary air-wash system for optimisation of classification efficiency.Operates under negative pressure promoting dust-free environment.Can be supplied with a variety of liners and coatings to improve wear resistance.
Note Note
Made in India
Options And Accessories Options And Accessories
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.The internal surfaces of the classifier can be lined with ceramic tiles of various grades.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast lron.The classifying wheel can also be made of wear resistant materials such as ceramic or silicon carbide.
Specifications Main Drive Motor
10 to 12 kW
Specifications Maximum Speed
3300 rpm | 5940 m³/h
Specifications Pressure Differential
380 mm/SWG
