Drawn Oval Can - CC Series Oil-Filled Capacitor
Drawn Oval Can - CC Series Oil-Filled Capacitor
SKU:OIL-44435f
High-quality Drawn Oval Can with 1-20 µF capacitance & 5000 VDC rating, ideal for high-voltage applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Drawn Oval Can - CC Series Oil-Filled Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
Drawn Oval Can - CC Series Oil-Filled Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

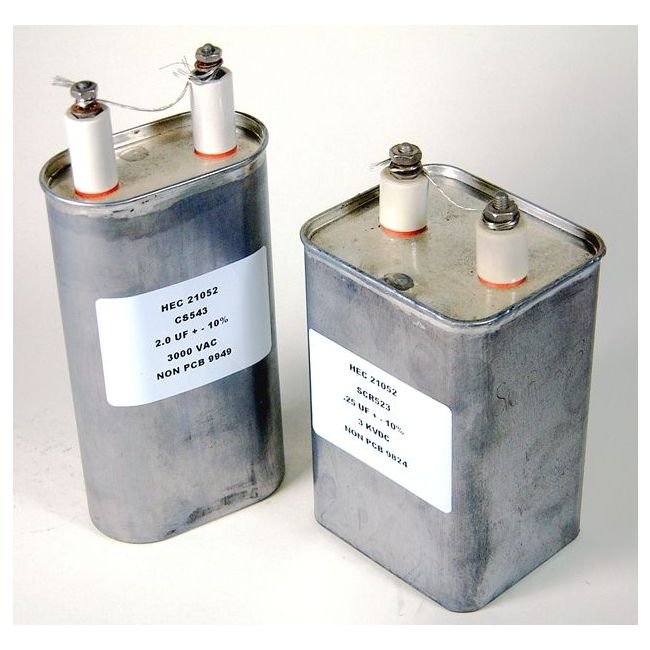

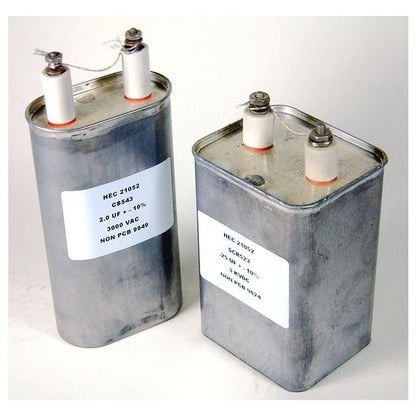

The Drawn Oval Can from the CC Series Oil-Filled Capacitors offers a capacitance range of 1 to 20 µF with a voltage rating of 5000 VDC, ensuring reliable performance in high-voltage applications. Constructed with plated drawn steel cans, this capacitor excels in both durability and functionality. With dimensions of 1.91" D x 2.91" W x 4" H, and additional features like ±10% capacitance tolerance, the Drawn Oval Can is designed to operate efficiently in temperatures ranging from -40 to +90 ºC. Its dielectric comprises environmentally compatible materials, making it a sustainable choice for government and institutional projects.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
1 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

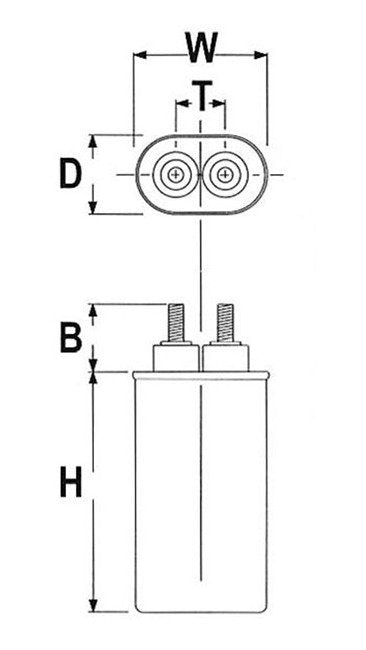

Specifications Dimension B
2 in
Specifications Dimension D
1.91 in
Specifications Dimension H
4 in
Specifications Dimension T
1.38 in
Specifications Dimension W
2.91 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
5000 V
