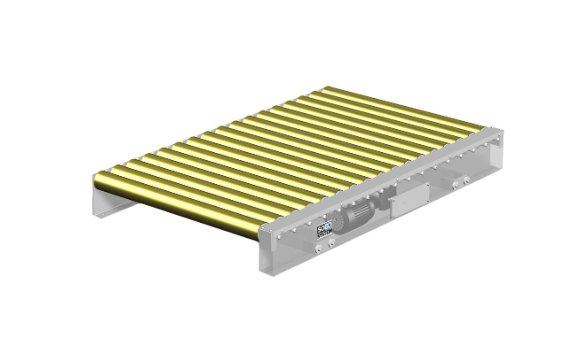

Drive Pallet Roller Conveyor with Sub-Mounted Gear Motor
Drive Pallet Roller Conveyor with Sub-Mounted Gear Motor
SKU:PAC-53fb50
Efficiently handle pallets with the SOCO Drive Pallet Conveyor. Durable construction, 0.37 kW gear motor, and 11.4 m/min speed ensure smooth operations.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Drive Pallet Roller Conveyor with Sub-Mounted Gear Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Drive Pallet Roller Conveyor with Sub-Mounted Gear Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOCO Drive Pallet Roller Conveyor with Sub-Mounted Gear Motor is a robust solution designed for efficient pallet handling. With a width of 1370 mm, length of 500 mm, and roller pitch of 89 mm, this conveyor can handle loads of up to 1,500 kg per pallet with ease. The electro galvanized steel construction ensures durability, while the 0.37 kW gear motor provides a smooth operation at a speed of 11.4 m/min. Compliance with industry standards and precise engineering make this conveyor ideal for packaging facilities and logistics operations.
Product Specifications
Dimensions Length
500 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Minimum Height
255 mm
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
