Drop Forged Eye Nut - Self-Colored or Hot Galvanized

Drop Forged Eye Nut - Self-Colored or Hot Galvanized

SKU:WIR-90b4d3

Upgrade wire rope rigging with our Drop Forged Eye Nut in self-colored or galvanized finish. Customizable tapping & high safe working load.

Regular price $27.99
Regular price Sale price $27.99
Sale

Initiate Order

Drop Forged Eye Nut - Self-Colored or Hot Galvanized

Drop Forged Eye Nut - Self-Colored or Hot Galvanized

$27.99

Quantity: 1

Claim Your Seller Account

Drop Forged Eye Nut - Self-Colored or Hot Galvanized

Drop Forged Eye Nut - Self-Colored or Hot Galvanized

$27.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your wire rope rigging with our Drop Forged Eye Nut available in Regular Self-Colored or Hot Galvanized finishes. Each Eye Nut is precisely drilled and tapped to standard specifications, with custom tapping or finishes available upon request. With a 5 to 1 safety factor, our Eye Nuts ensure reliable performance. Note that the listed Safe Working Load of 520 lbs applies solely to the Eye Nut itself, not including any connecting bolt or stud. Choose self-colored blanks or opt for the durable hot galvanized finish to meet your specific needs.

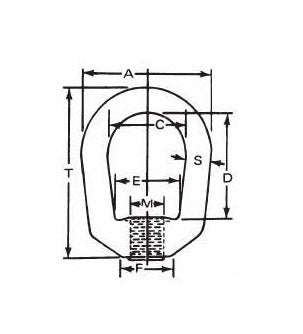

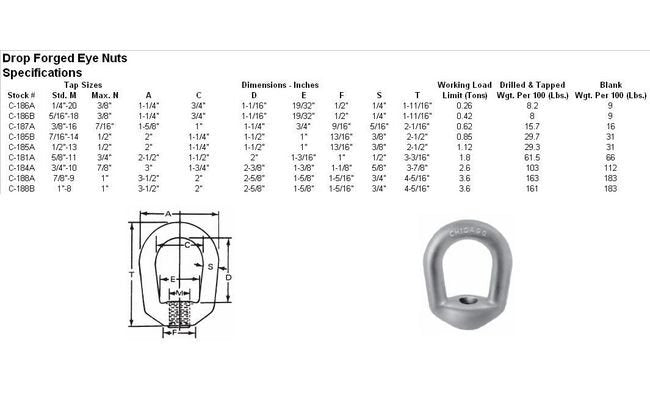

Product Specifications

Specifications A
1-1/4
Specifications Bail Size In
1/4"
Specifications C
3/4
Specifications D
1-1/16
Specifications E
19/32
Specifications F
1/2
Specifications S
1/4
Specifications Safe Working Load
520 lbs
Specifications Stock
C-186A
Specifications T
1-11/16
Specifications Tap Size
1/4"-20
CAGE
0T9L4
NAICS
332510
PSC
4030
