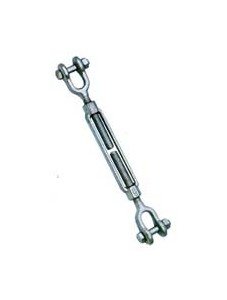

Drop Forged Galvanized Turnbuckles Jaw & Jaw 1/2 x 12 UNC, 2200 lbs WLL
Drop Forged Galvanized Turnbuckles Jaw & Jaw 1/2 x 12 UNC, 2200 lbs WLL
SKU:WIR-421268
Premium Hot Dip Galvanized Turnbuckles Jaw & Jaw for heavy-duty applications, 2200 lbs WLL
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Drop Forged Galvanized Turnbuckles Jaw & Jaw 1/2 x 12 UNC, 2200 lbs WLL
$49.99
Quantity: 1
Claim Your Seller Account
Drop Forged Galvanized Turnbuckles Jaw & Jaw 1/2 x 12 UNC, 2200 lbs WLL
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are meticulously crafted with end fittings that are Quenched and Tempered and bodies heat treated by normalizing for superior strength and durability. These turnbuckles are specifically designed for straight or in-line pulls, ideal for heavy-duty applications. Made from hot dip galvanized steel, these turnbuckles offer exceptional corrosion resistance, ensuring longevity in demanding environments. With a Working Load Limit (WLL) of 2200 lbs, these turnbuckles provide reliable support for various rigging and lifting operations.

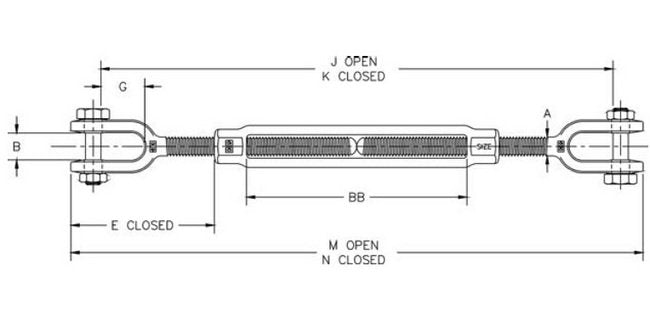

Product Specifications
Specifications A
0.5
Specifications B
0.64
Specifications Bb
12.36
Specifications E Closed
3.2
Specifications G
1.07
Specifications J Open
30.94
Specifications K Closed
18.94
Specifications M Open
32.43
Specifications N Closed
20.43
Specifications Pin Diam
.37 "
Specifications Thread Dia Take Up In
1/2 x 12
Specifications Weight
2.71
Specifications Wll Lbs
2200
