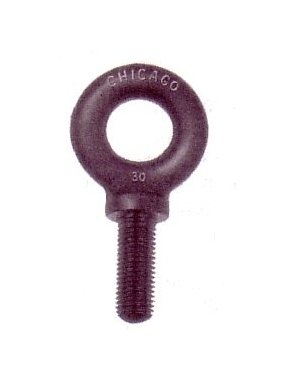

Drop Forged Heat-Treated Eye Bolts - Style 567 Standard Shoulder Pattern

Name: Drop Forged Heat-Treated Eye Bolts - Style 567 Standard Shoulder Pattern
Brand: Orr & Orr, Inc.
SKU: TRU-673904
Price: 5.95 USD
Availability: OutOfStock

SKU:TRU-673904

Explore our Drop Forged Heat-Treated Eye Bolts for sturdy and reliable performance in commercial and industrial settings.

$5.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Drop Forged Heat-Treated Eye Bolts, featuring Style 567 Standard Shoulder Pattern, are designed to meet the rigorous demands of commercial and industrial applications. With precise specifications including a 1 3/16-inch E dimension, 3/8-16 threaded ends, and mini proof load of 2100 lb, these bolts deliver superior performance and reliability. Constructed for heavy-duty use, they offer a safe working load capacity up to 1400 lb in Wx direction, making them ideal for truck hardware and other heavy-duty applications.

Product Specifications

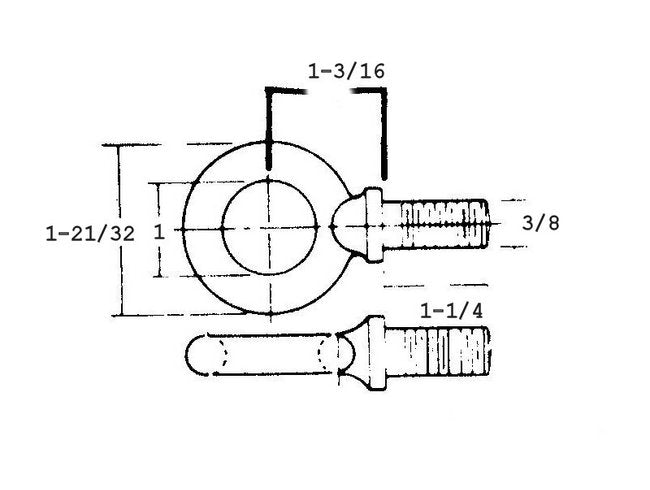

Specifications A

3/8 Inch

Specifications B

1 1/4 Inch

Specifications C

1 Inch

Specifications D

1 21/32 Inch

Specifications E

1 3/16 Inch

Specifications List Price

5.95 USD

Specifications Mini Break Load

5000 lb

Specifications Mini Proof Load

2100 lb

Specifications Min Eff Length

7/8 Inch

Specifications No

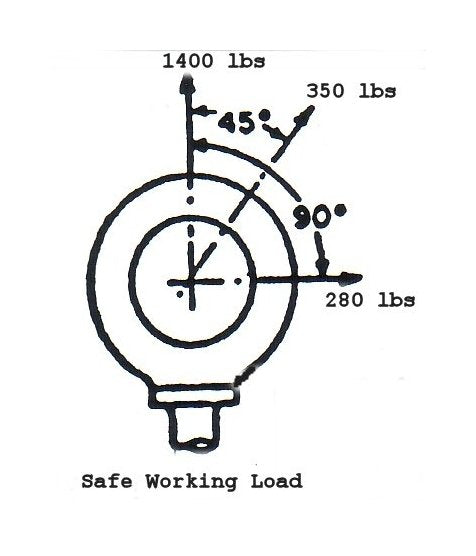

Specifications Safe Working Load Wx

1400

Specifications Safe Working Load Wy

350

Specifications Safe Working Load Wz

280

Specifications Stocked Thread

Blk Inch

Specifications Thread

3/8-16

Specifications Type

Style 567 Standard Shoulder Pattern

Specifications Weight

17 lb/C

Drop Forged Heat-Treated Eye Bolts - Style 567 Standard Shoulder Pattern
