Drop Forged Ring Bolts Regular - Screw Thread, Made in USA

Name: Drop Forged Ring Bolts Regular - Screw Thread, Made in USA
Brand: Lexco Cable Manufacturing
SKU: WIR-14ba25
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-14ba25

High-quality Drop Forged Ring Bolts for versatile applications, made in the USA by Chicago Hardware & Fixture Co.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

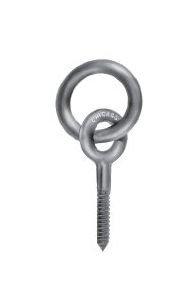

The Drop Forged Ring Bolts Regular with Screw Thread, made in the USA by Chicago Hardware & Fixture Company, offer superior strength and durability. These hot galvanized eye bolts are meticulously crafted for various applications, featuring a 3/8" diameter, 2-1/2" shank length, and a 1-1/2" O.D. eye bolt. Ideal for cable assemblies, these bolts are versatile and reliable while meeting stringent quality standards.

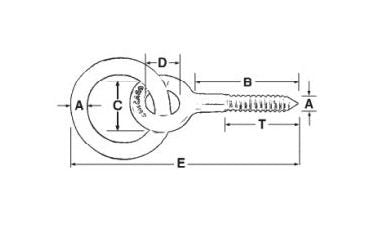

Product Specifications

Specifications Diameter A Shank Length B

3/8" x 2-1/2"

Specifications Id Eye Of Bolt D

3/4"

Specifications Id Eye Of Ring

2-1/2"

Specifications Od Eye Of Bolt C

1-1/2"

Specifications Overall Length E

6-1/2"

Specifications Thread Length T

1-3/4" "

Specifications Wt Per 100 Pcs Lbs

44.3

CAGE

0T9L4

NAICS

332722

PSC

5306

Drop Forged Ring Bolts Regular - Screw Thread, Made in USA
