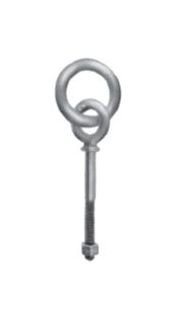

The Drop Forged Ring Bolts Shoulder with Machine Thread, made in the USA by Chicago Hardware & Fixture Company, are constructed from hot galvanized steel for enhanced durability. These bolts feature precise dimensions for secure attachment to cable assemblies. Designed for non-lifting applications, these bolt shoulders offer a high weight load limit of 400 lbs, meeting stringent safety standards.

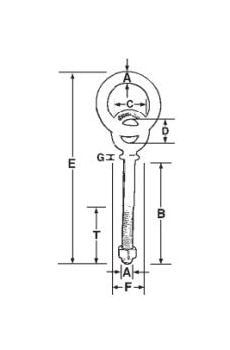

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 4-1/4"
Specifications Id Eye Of Bolt D
5/8"
Specifications Id Eye Of Ring
2"
Specifications Od Eye Of Bolt C
1-1/4"
Specifications Outside Shoulder F
9/16"
Specifications Overall Length E
6-5/8"
Specifications Thickness At Shoulder G
3/32"
Specifications Thread Length T
2" "
Specifications Wll Lbs
400
Specifications Wt Per 100 Pcs Lbs
33.5
CAGE
0T9L4
NAICS
332722
PSC
5306
