DRV-08 Inline SAE Flow Control Valve with Check
DRV-08 Inline SAE Flow Control Valve with Check
SKU:ACC-dfbf08
Achieve precise hydraulic flow control with the DRV-08 Inline SAE Flow Control Valve with Check. Durable, accurate, and compliant with ISO standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DRV-08 Inline SAE Flow Control Valve with Check
$89.99
Quantity: 1
Claim Your Seller Account
DRV-08 Inline SAE Flow Control Valve with Check
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-08 Inline SAE Flow Control Valve with Check is a precision-engineered hydraulic valve designed for safe, simple, and repeatable control of hydraulic fluids up to 5000 PSI. Featuring SAEJ1926 ports with ISO 725 threads and O-ring sealing, this valve ensures secure connections and efficient flow control. With a micrometer-style adjustment knob and color-coded flow indicator, achieving precise flow adjustment is effortless. The valve's carbon steel construction, zinc plating, and temperature range of -4 ºF to 212 ºF make it durable and reliable for a variety of applications. Additionally, its compliance with International Organization for Standardization (ISO) standards ensures quality and performance.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.84 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
1.32 in | 33.5 mm
Dimensions Dimension F
2.17 in | 55 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

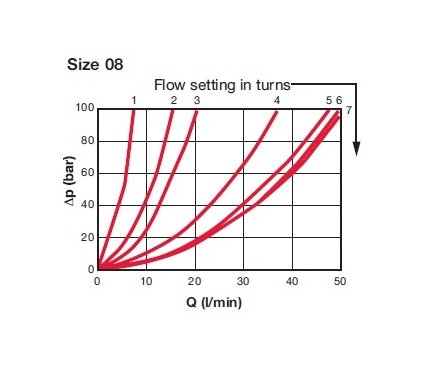

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications 0
Panel Mounting Kit
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
7/16-20 UNF (SAE-4)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-08-01.X/12-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
7/16-20 UNF (SAE-4)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.3 kg | 0.66 lb
