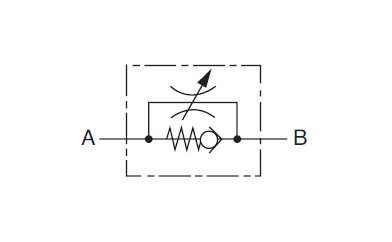

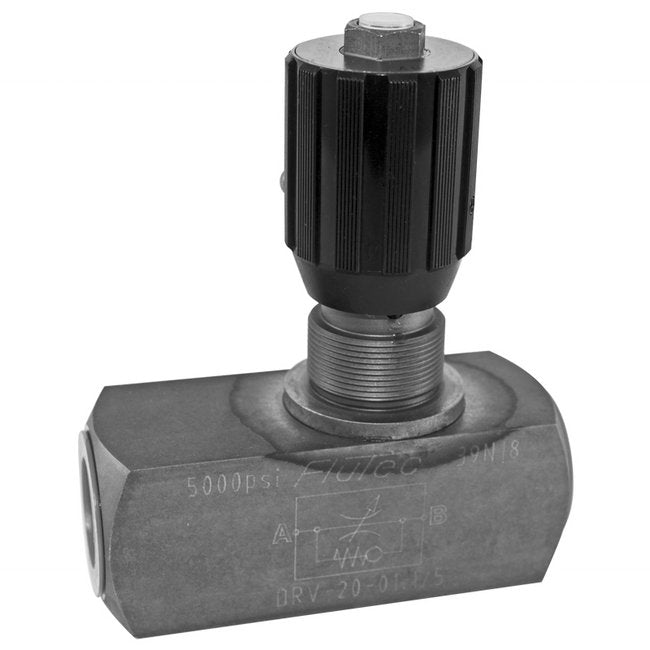

The DRV-10 BSPP Flow Control Valve with check valve combines safety and precision in controlling hydraulic fluids at pressures up to 5000 PSI. Featuring a micrometer style adjustment knob with a color-coded flow indicator, this valve allows for accurate and repeatable flow adjustments. With a durable carbon steel housing, BSPP port configuration, and compliance with industry standards like DIN 3852, this valve ensures reliable performance in inline applications. Its unique safety spindle design, provision for panel mounting, and FPM O-rings further enhance its functionality and ease of use.
Product Specifications

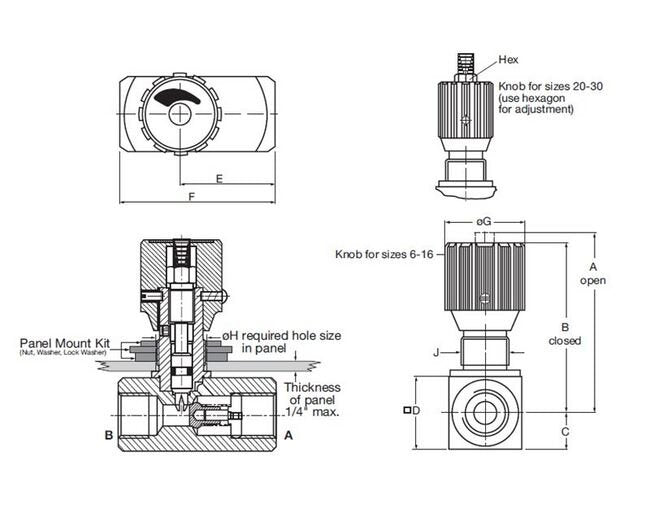

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
G 3/8
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
DRV-10-01.X/0
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G 3/8
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
