The DRV-10 NPTF Flow Control Valve with Check is a precision-engineered solution for hydraulic fluid control at pressures up to 5000 PSI. Featuring a micrometer style adjustment knob with a color-coded flow indicator, this valve ensures safe, simple, and repeatable flow adjustments. Built with carbon steel housing, zinc plated finish, and NPTF threaded connections, it meets ANSI standards for reliable performance. With a cracking pressure of 7 psi and a temperature range from -4°F to 212°F, this valve delivers accurate flow control in diverse conditions. Its unique safety spindle design, provision for panel mounting, and compatibility with various threaded connections make it versatile and efficient.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

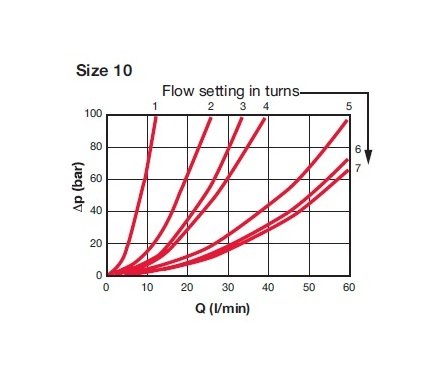

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications 0
Panel Mounting Kit
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-10-01.X/5-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
