DRV-10 NPTF Flow Control Valve with Check
DRV-10 NPTF Flow Control Valve with Check
SKU:ACC-18455c
Achieve precise hydraulic flow control up to 5000 PSI with DRV-10 NPTF Flow Valve. ANSI standard compliant for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DRV-10 NPTF Flow Control Valve with Check
$89.99
Quantity: 1
Claim Your Seller Account
DRV-10 NPTF Flow Control Valve with Check
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-10 NPTF Flow Control Valve with Check is a robust inline valve designed for precise hydraulic fluid control up to 5000 PSI. Featuring a micrometer style adjustment knob with color-coded flow indicator, operators can easily and accurately regulate flow. Built to ANSI standards with carbon steel housing and Zinc Plated finish, this valve ensures durability and reliability in inline applications. With a cracking pressure of 7 psi and temperature range from -4°F to 212°F, this valve delivers consistent performance in diverse settings. Dimensions and end configurations cater to industry requirements, making it an ideal choice for institutional buyers seeking quality flow control solutions.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

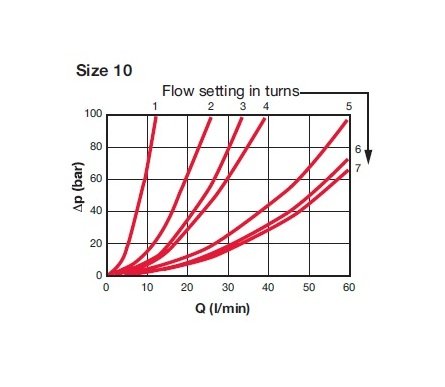

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-10-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
