DRV-10 SAE Flow Control Valve with Check

DRV-10 SAE Flow Control Valve with Check

ACC-21c3b5

Achieve precise hydraulic fluid control with the DRV-10 SAE Flow Control Valve. Easy adjustment, reliable performance.

$89.99
$89.99
Sale

Initiate Order

DRV-10 SAE Flow Control Valve with Check

DRV-10 SAE Flow Control Valve with Check

$89.99

Quantity: 1

Claim Your Seller Account

DRV-10 SAE Flow Control Valve with Check

DRV-10 SAE Flow Control Valve with Check

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DRV-10 SAE Flow Control Valve with Check is a precision-engineered hydraulic valve designed for safe, simple, and precise fluid control at pressures up to 5000 PSI. Featuring a micrometer style adjustment knob with a color-coded flow indicator, this valve ensures accurate flow control with ease. Built with industry-standard materials and certifications like ISO, this valve guarantees reliable performance in various applications. With a compact design and versatile mounting options, it provides seamless integration into hydraulic systems for efficient operation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

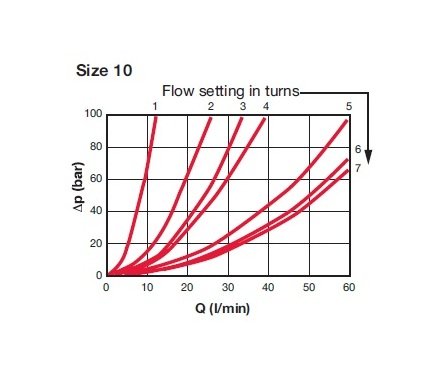

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
25 psi
Specifications Division
ACCESSORIES
Specifications End Size
9/16-18 UNF (SAE-6)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-10-01.X/12- 25
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
9/16-18 UNF (SAE-6)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
