DRV-12 BSPP Flow Control Valve with Check - Hydraulic Fluid Control Valve
DRV-12 BSPP Flow Control Valve with Check - Hydraulic Fluid Control Valve
SKU:ACC-5180b8
Precisely control hydraulic fluids with the DRV-12 BSPP Flow Control Valve for safe and repeatable inline use at up to 5000 PSI.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DRV-12 BSPP Flow Control Valve with Check - Hydraulic Fluid Control Valve
$89.99
Quantity: 1
Claim Your Seller Account
DRV-12 BSPP Flow Control Valve with Check - Hydraulic Fluid Control Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

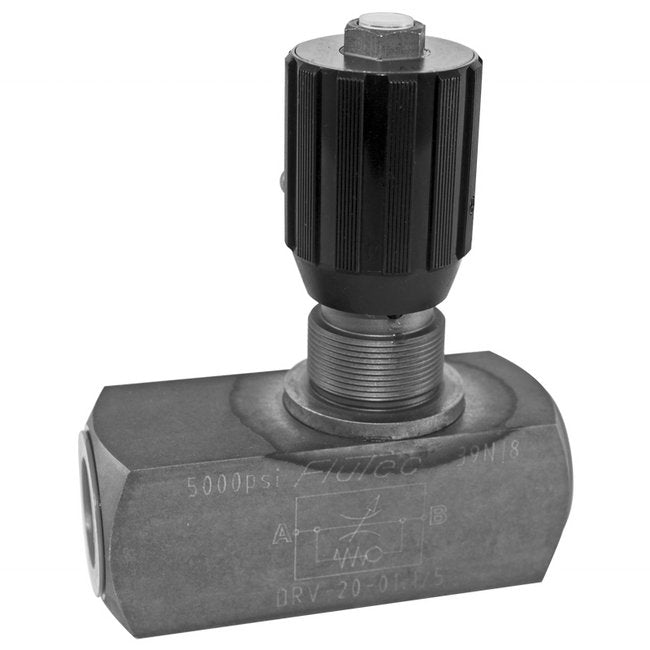

The DRV-12 BSPP Flow Control Valve with check enables precise and repeatable control of hydraulic fluids at pressures up to 5000 PSI. Featuring a micrometer-style adjustment knob with color-coded flow indicator for easy visual reference, this valve offers safe and simple inline application. Constructed of carbon steel with zinc plating, this valve meets DIN 3852 standards and comes with unique safety spindle design for added reliability. With dimensions of 3.62" x 3.23" x 0.69" and a weight of 0.8 kg, this valve is suitable for a wide range of industrial applications.

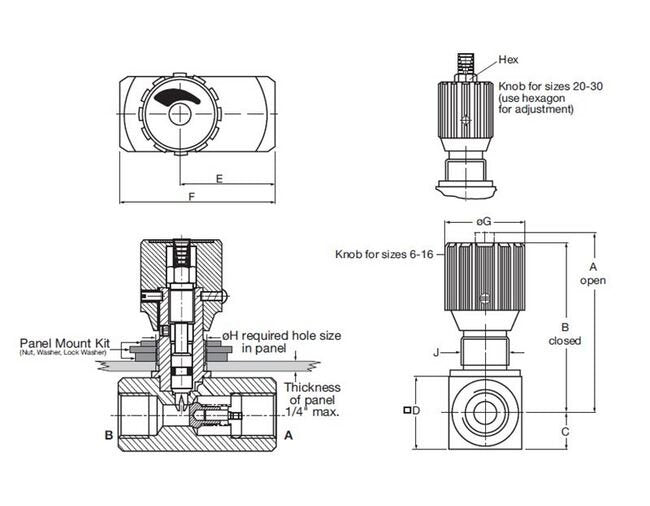

Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.73 in | 44 mm
Dimensions Dimension F
2.87 in | 73 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
G 1/2
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
DRV-12-01.X/0
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G 1/2
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.8 kg | 1.76 lb
