DRV-12 NPTF Flow Control Valve with Check
DRV-12 NPTF Flow Control Valve with Check
SKU:ACC-dbca31
Achieve precise hydraulic fluid control up to 5000 PSI with the DRV-12 NPTF Flow Control Valve featuring color-coded indicator and ANSI certification.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DRV-12 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Claim Your Seller Account
DRV-12 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-12 NPTF Flow Control Valve with Check is engineered for precise hydraulic fluid control at up to 5000 PSI with a micrometer-style adjustment knob. This valve, made of durable carbon steel, features NPTF threaded connections, color-coded flow indicator, and unique safety spindle design. With a temperature range from -4°F to 212°F, this valve ensures reliable performance in various applications. Accompanied by zinc plating and ANSI certification, this valve guarantees safety, simplicity, and repeatability in inline hydraulic systems.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.73 in | 44 mm
Dimensions Dimension F
2.87 in | 73 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

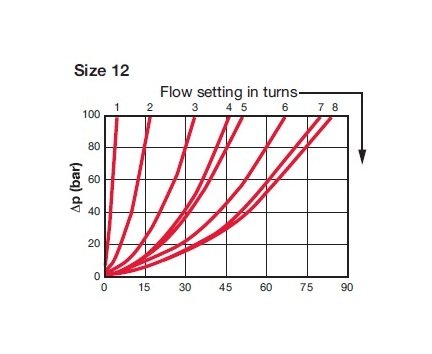

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/2 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-12-01.X/5-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/2 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.8 kg | 1.76 lb
