DRV-20 NPTF Flow Control Valve with Check
DRV-20 NPTF Flow Control Valve with Check
SKU:ACC-eef619
Achieve precise hydraulic fluid control up to 5000 PSI with the DRV-20 NPTF Flow Control Valve featuring color-coded adjustment for easy flow reference.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DRV-20 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Claim Your Seller Account
DRV-20 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-20 NPTF Flow Control Valve with Check is designed for precise hydraulic fluid control up to 5000 PSI. This valve features an inline mounting configuration with NPTF connections, a color-coded micrometer adjustment knob for accurate flow adjustment, and a unique safety spindle design. With carbon steel housing, ANSI certification, and industry-standard NPTF ports, this valve ensures reliable performance under extreme temperatures and pressures. Ideal for applications requiring repeatable and safe fluid control, this valve meets stringent standards for quality and durability.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.71 in | 145 mm
Dimensions Dimension B
5.04 in | 128 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
3.03 in | 77 mm
Dimensions Dimension F
5 in | 127 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

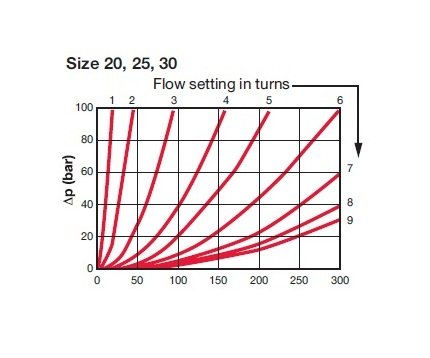

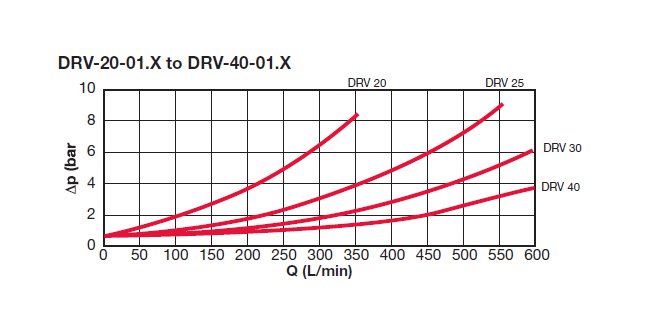

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 in.
Specifications End Type
NPTF
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-20-01.X/5-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
20
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
2.4 kg | 5.29 lb
