DRV-25 NPTF Flow Control Valve with Check

DRV-25 NPTF Flow Control Valve with Check

ACC-64a249

Achieve precise hydraulic fluid flow control up to 5000 PSI with the DRV-25 NPTF Flow Control Valve. ANSI certified for reliability.

$299.99
$299.99
Sale

Initiate Order

DRV-25 NPTF Flow Control Valve with Check

DRV-25 NPTF Flow Control Valve with Check

$299.99

Quantity: 1

Claim Your Seller Account

DRV-25 NPTF Flow Control Valve with Check

DRV-25 NPTF Flow Control Valve with Check

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DRV-25 NPTF Flow Control Valve with Check is a precision-engineered hydraulic valve that allows for safe and repeatable control of fluids up to 5000 PSI with NPTF threaded connections. Featuring a micrometer style adjustment knob with a color coded flow indicator, this valve ensures precise flow adjustment for optimized hydraulic operations. Constructed with carbon steel housing and meeting American National Standards Institute (ANSI) certifications, this valve guarantees durability, reliability, and adherence to industry standards. With its unique safety spindle design, provision for panel mounting, and FPM O-Rings, this valve offers enhanced safety, ease of installation, and efficient flow control for a wide range of applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
3.66 in | 93 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

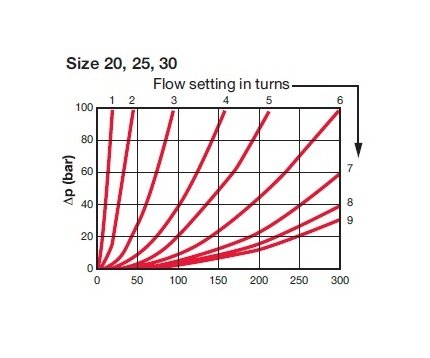

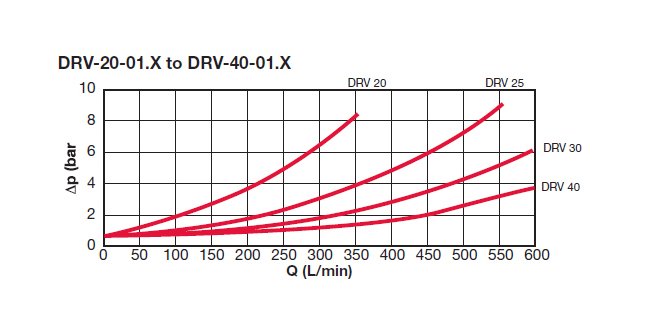

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 1/4 in.
Specifications End Type
NPTF
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-25-01.X/5-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
3.50 kg | 7.72 lb
