The DRV-25 NPTF Flow Control Valve with Check is designed for precise and repeatable control of hydraulic fluids at pressures up to 5000 PSI. This in-line valve features a micrometer style adjustment knob with a color-coded flow indicator for easy flow reference. With a housing material of carbon steel and NPTF threaded connections, this valve ensures safe and efficient operation. It meets ANSI standards and offers unique safety spindle design, making it ideal for various industrial applications.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
3.66 in | 93 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

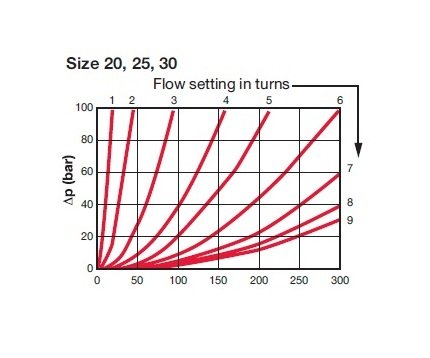

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 1/4 in.
Specifications End Type
NPTF
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-25-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
3.50 kg | 7.72 lb
