DRV-25 SAE Flow Control Valve with Check
DRV-25 SAE Flow Control Valve with Check
SKU:ACC-4aeebb
Achieve precise hydraulic fluid control with the DRV-25 SAE Flow Control Valve with Check. Easily adjust flow up to 5000 PSI for safe and repeatable performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DRV-25 SAE Flow Control Valve with Check
$249.99
Quantity: 1
Claim Your Seller Account
DRV-25 SAE Flow Control Valve with Check
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-25 SAE Flow Control Valve with Check is a precision-engineered valve designed for safe and repeatable control of hydraulic fluids at pressures up to 5000 PSI. Its micrometer-style adjustment knob allows for precise flow control, while the color-coded flow indicator ensures easy visual reference. With SAEJ1926 Ports, ISO 725 Threads, and O-Ring Sealing, this valve is constructed from high-quality carbon steel, making it ideal for inline mounting applications in a wide range of industries.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
3.66 in | 93 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

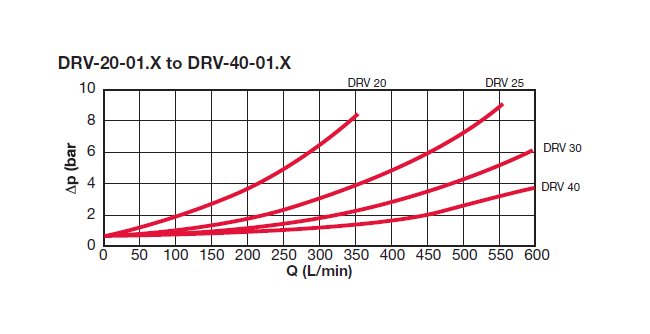

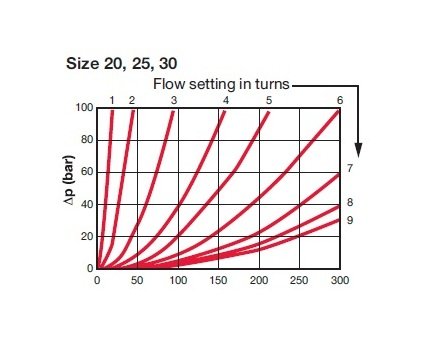

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 5/8-12 UN (SAE-20)
Specifications End Type
SAE
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-25-01.X/12-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 5/8-12 UN (SAE-20)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
3.50 kg | 7.72 lb
