DRV-30 NPTF Flow Control Valve with Check - In-Line Hydraulic Fluid Control
DRV-30 NPTF Flow Control Valve with Check - In-Line Hydraulic Fluid Control
SKU:ACC-d136b0
Achieve precise hydraulic fluid control up to 5000 PSI with the DRV-30 NPTF Flow Control Valve. ANSI compliant for safety and accuracy.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
DRV-30 NPTF Flow Control Valve with Check - In-Line Hydraulic Fluid Control
$259.99
Quantity: 1
Claim Your Seller Account
DRV-30 NPTF Flow Control Valve with Check - In-Line Hydraulic Fluid Control
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRV-30 NPTF Flow Control Valve with Check is meticulously engineered for precise and repeatable control of hydraulic fluids at pressures up to 5000 PSI. Featuring a micrometer-style adjustment knob with a color-coded flow indicator, this valve ensures accurate and easy flow adjustment. Constructed with carbon steel housing, this valve is designed for reliable performance in inline applications. With a cracking pressure of 7 psi and compliance with ANSI standards, this valve offers straightforward operation and enhanced safety.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
6.1 in | 155 mm
Dimensions Dimension B
5.43 in | 138 mm
Dimensions Dimension C
1.38 in | 35 mm
Dimensions Dimension D
2.76 in | 70 mm
Dimensions Dimension E
4.25 in | 108 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

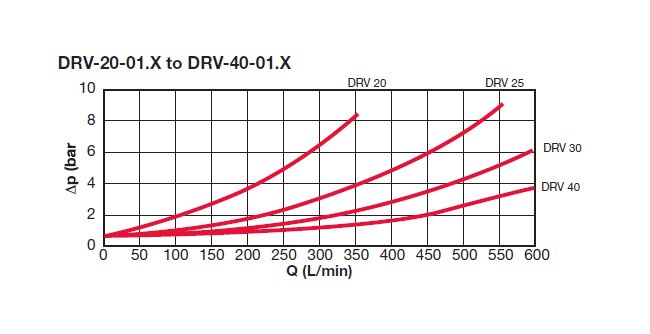

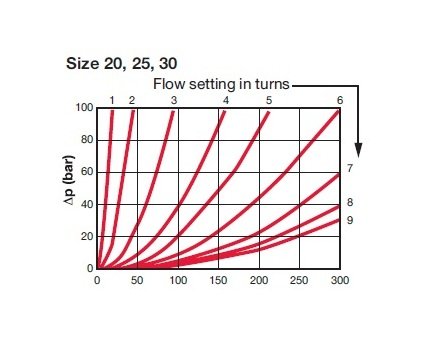

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 1/2 in.
Specifications End Type
NPTF
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-30-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
30
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/2 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
4.60 kg | 7.72 lb
