DRYPOINT FDR4 Membrane Dryer Unit
DRYPOINT FDR4 Membrane Dryer Unit
SKU:CLE-c0f98a
DRYPOINT FDR4 Membrane Dryer Unit delivers clean, reliable air treatment with high performance and low maintenance.
Regular price
$1,186.00
Regular price
Sale price
$1,186.00
Unit price
per
Initiate Order
DRYPOINT FDR4 Membrane Dryer Unit
$1,186.00
Quantity: 1
Claim Your Seller Account
DRYPOINT FDR4 Membrane Dryer Unit
$1,186.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT FDR4 Membrane Dryer Unit from the DRYPOINT® FDR series offers a comprehensive solution for clean air treatment. This pre-configured package includes filters, dryers, and pressure regulators, ensuring optimal air quality for various applications. With custom configurations available, it provides flexibility to suit specific needs. Operating at temperatures ranging from 34°F to 160°F and pressures up to 232 psig, this unit requires minimal maintenance intervals of 4,000 - 8,000 hours. With Twist 45 Technology, it guarantees high performance, reliability, and energy savings. Maintenance-free and designed for versatility, it is ideal for diverse institutional and government procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid

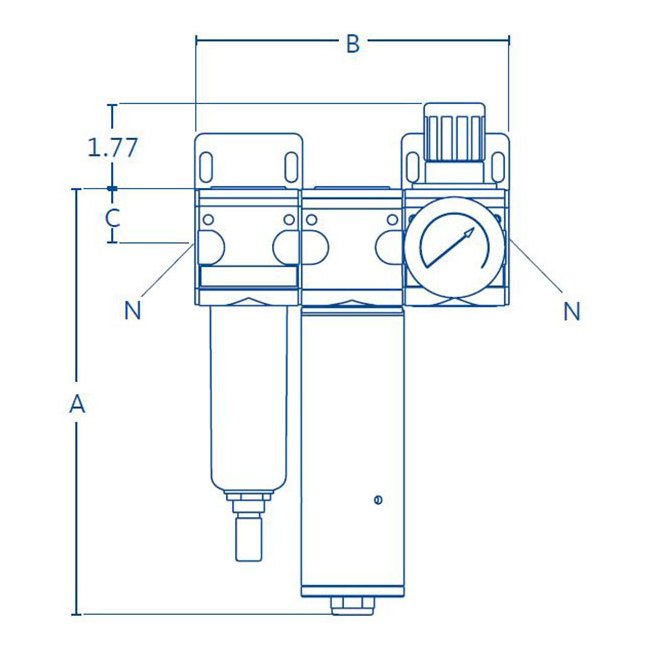

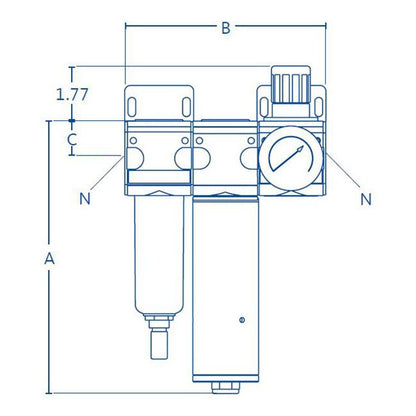

Specifications Dimension A
9.44 in
Specifications Dimension B
5.51 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
4.18 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1,186 USD
Specifications Weight
6.27 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
