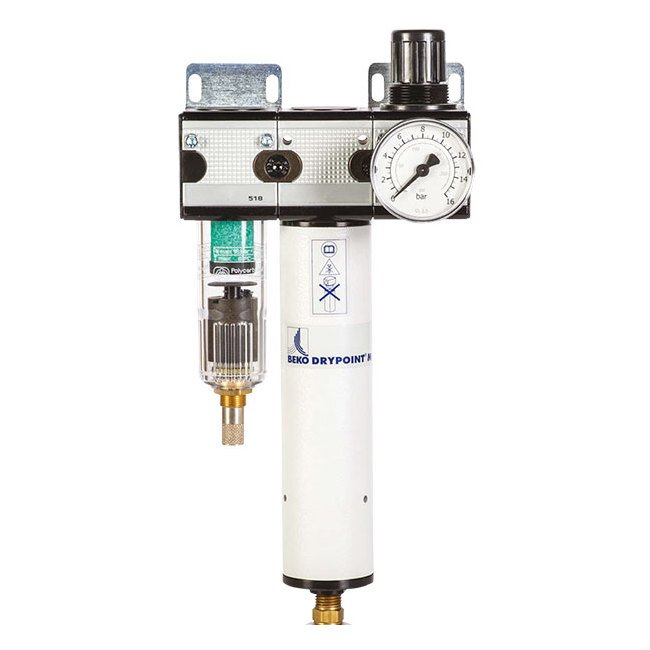

The DRYPOINT FDR6 Membrane Dryers from the DRYPOINT FDR series are expertly designed pre-configured packages that combine filters, dryers, and pressure regulators for efficient clean air treatment. With a maximum standard operating pressure of 140 psig and a maximum optional operating temperature of 160 °F, these dryers offer top-notch performance for various applications. Featuring Twist 45 Technology, these membrane dryers ensure reliable dew point suppression, energy savings, and maintenance-free operation. The compact design and high reliability make them ideal for both consumer and institutional buyers looking for lasting performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid

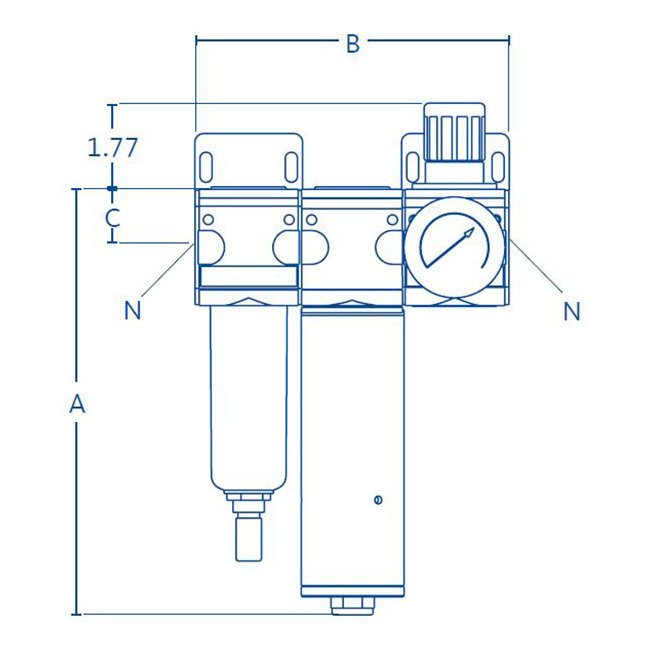

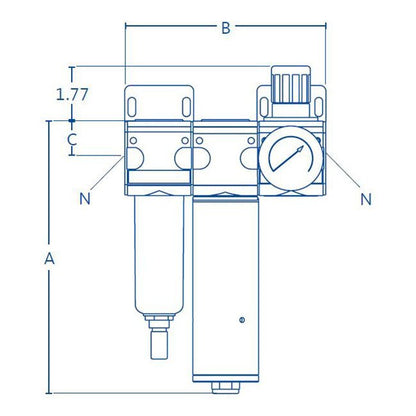

Specifications Dimension A
11.02 in
Specifications Dimension B
5.51 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
6.27 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1227 USD
Specifications Weight
3.30 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
