DRYPOINT FDR8 Membrane Dryers - Clean Air Treatment Solution
DRYPOINT FDR8 Membrane Dryers - Clean Air Treatment Solution
SKU:CLE-6c64b8
DRYPOINT FDR8 Membrane Dryers - Clean, dry air solution for various applications. Flow Rate: 8.36 scfm, Max Temp: 160 °F, Max Pressure: 232 psig. Maintenance-free and reliable with 5-year warranty.
Regular price
$1,312.00
Regular price
Sale price
$1,312.00
Unit price
per
Initiate Order
DRYPOINT FDR8 Membrane Dryers - Clean Air Treatment Solution
$1,312.00
Quantity: 1
Claim Your Seller Account
DRYPOINT FDR8 Membrane Dryers - Clean Air Treatment Solution
$1,312.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

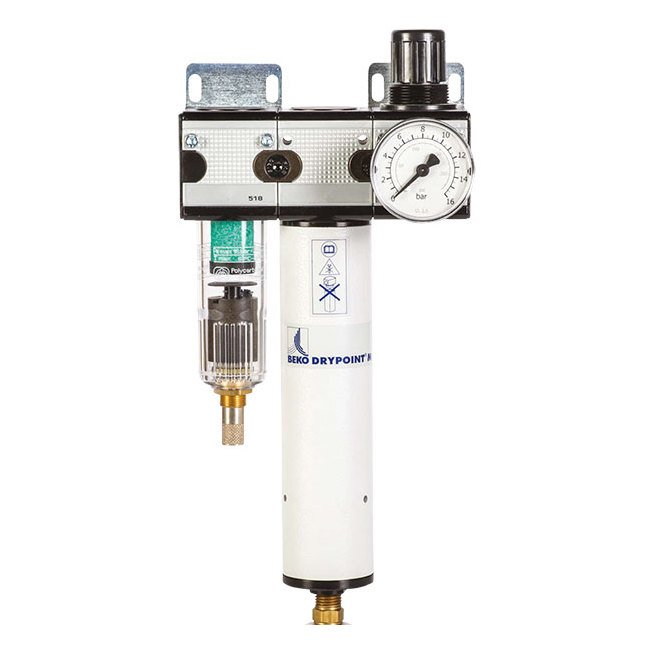

Enhance air quality with the DRYPOINT FDR8 Membrane Dryers from the DRYPOINT FDR series. These pre-configured packages include advanced filtration, a pressure regulator, and a dryer. With a flow rate of 8.36 scfm and integrated pre-filtration of 0.01 µm, these dryers ensure clean, dry air for various applications. Operating at temperatures up to 160 °F and pressures up to 232 psig, the DRYPOINT FDR8 Membrane Dryers offer maintenance-free operation, energy savings, and reliable performance in diverse settings. With a warranty of 5 years, they provide lasting quality and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid

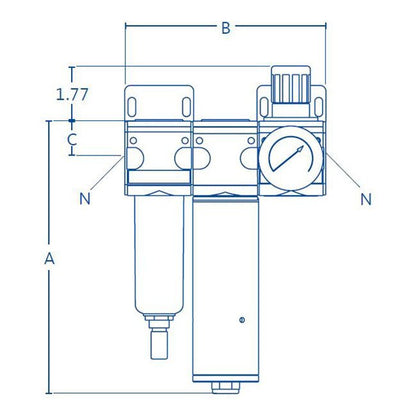

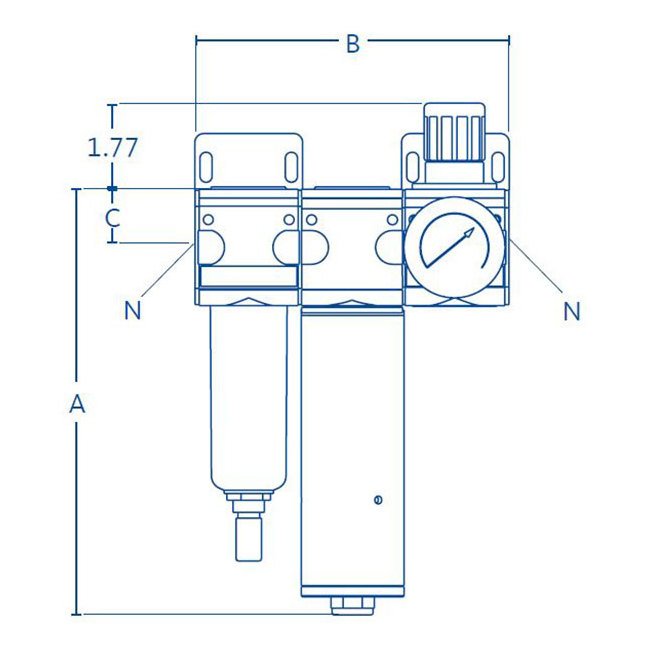

Specifications Dimension A
13.38 in
Specifications Dimension B
5.51 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
8.36 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1312 USD
Specifications Weight
3.50 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
