DRYPOINT MDi100 Membrane Dryers
DRYPOINT MDi100 Membrane Dryers
SKU:CLE-ba7332
Advanced membrane dryers with integrated pre-filtration, precise dew point control, and energy-efficient Twist 45 Technology.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
DRYPOINT MDi100 Membrane Dryers
$2,699.99
Quantity: 1
Claim Your Seller Account
DRYPOINT MDi100 Membrane Dryers
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT MDi100 ecoIntelligent Series Membrane Dryers are engineered for precise pressure dew point control, featuring integrated pre-filtration of 0.01 µm. With a flow rate of 95.84 scfm and dimensions of 41.38" x 9.84" x 6.46", these membrane dryers operate at a max pressure of 145 psig and max temperature of 122°F. The innovative Twist 45 Technology ensures optimal performance and energy efficiency, making it an ideal choice for diverse applications. Backed by a 5-year warranty, this maintenance-free system guarantees lasting reliability even in the most demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1 in

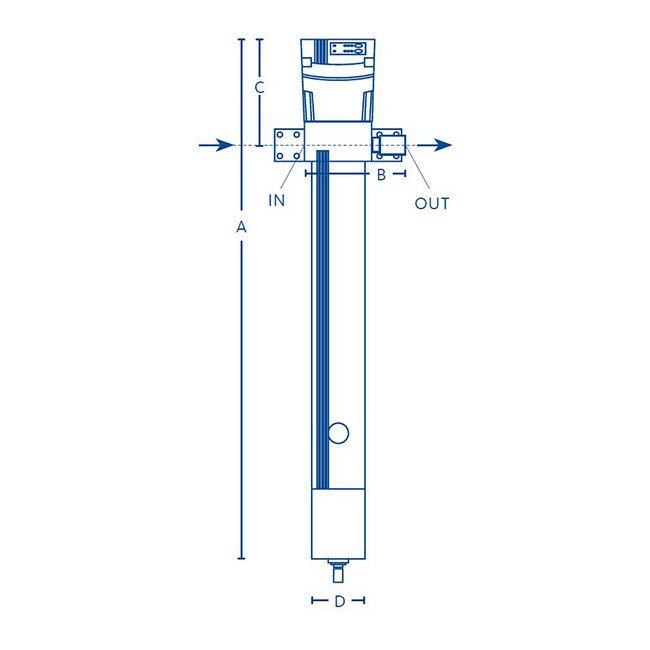

Specifications Dimension A
41.38 in
Specifications Dimension B
9.84 in
Specifications Dimension C
6.46 in
Specifications Dimension D
4.92 in
Specifications Flow Rate
95.84 scfm
Specifications Inlet Capacity For Purge Air 10
95.84 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
26.46 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
