DRYPOINT MDi45 Membrane Dryer
DRYPOINT MDi45 Membrane Dryer
SKU:CLE-36df4b
Efficient DRYPOINT MDi45 ecoIntelligent Membrane Dryer for precise air treatment in institutional applications.
Regular price
$1,349.99
Regular price
Sale price
$1,349.99
Unit price
per
Initiate Order
DRYPOINT MDi45 Membrane Dryer
$1,349.99
Quantity: 1
Claim Your Seller Account
DRYPOINT MDi45 Membrane Dryer
$1,349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT MDi45 ecoIntelligent Series Membrane Dryer offers precision air treatment with adjustable pressure dew point control. Featuring integrated pre-filtration of 0.01 µm and a flow rate of 43.01 scfm, this dryer ensures clean, dry air for various applications. With a compact design and minimal maintenance requirements, it is ideal for institutional and government facilities seeking reliable air quality solutions. The Twist 45 Technology ensures high performance and energy efficiency, meeting the stringent standards of institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
3/4 in

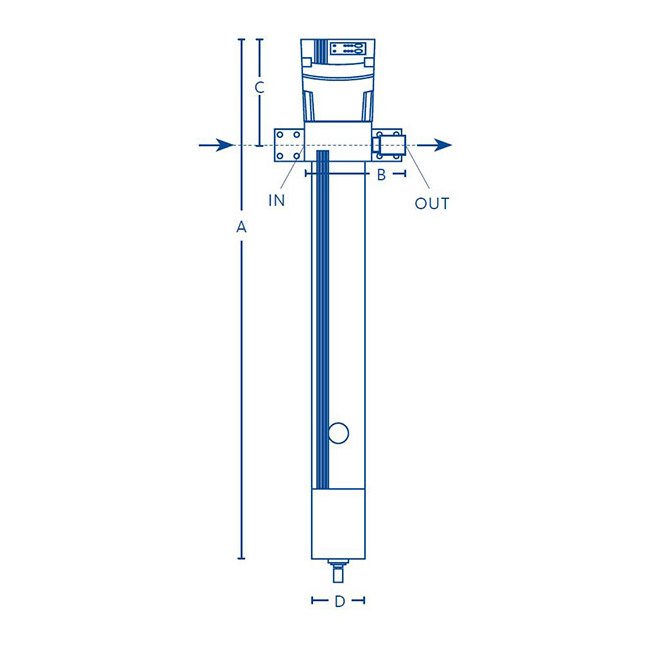

Specifications Dimension A
31.93 in
Specifications Dimension B
7.06 in
Specifications Dimension C
5.90 in
Specifications Dimension D
3.14 in
Specifications Flow Rate
43.01 scfm
Specifications Inlet Capacity For Purge Air 10
31.93 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
12.13 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
