DRYPOINT® MDi17 ecoIntelligent Membrane Air Dryer
DRYPOINT® MDi17 ecoIntelligent Membrane Air Dryer
SKU:CLE-a628f6
Efficient DRYPOINT® MDi17 Membrane Air Dryer for precise dew point control in compressed air systems. Integrated pre-filtration, reliable Twist 45 Technology, and compact design.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
DRYPOINT® MDi17 ecoIntelligent Membrane Air Dryer
$749.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDi17 ecoIntelligent Membrane Air Dryer
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi17 ecoIntelligent Membrane Air Dryer is a high-performance solution designed for precise dew point control in compressed air systems. With integrated pre-filtration of 0.01 μm, this ecoIntelligent series dryer ensures clean and dry air output. Operating at a maximum pressure of 145 psig and temperature of 122 °F, it offers a flow rate of 16.73 scfm. The Twist 45 Technology provides reliable dew point suppression and energy savings. Maintenance-free and compact, this dryer is ideal for various applications requiring efficiency and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
3/8 in

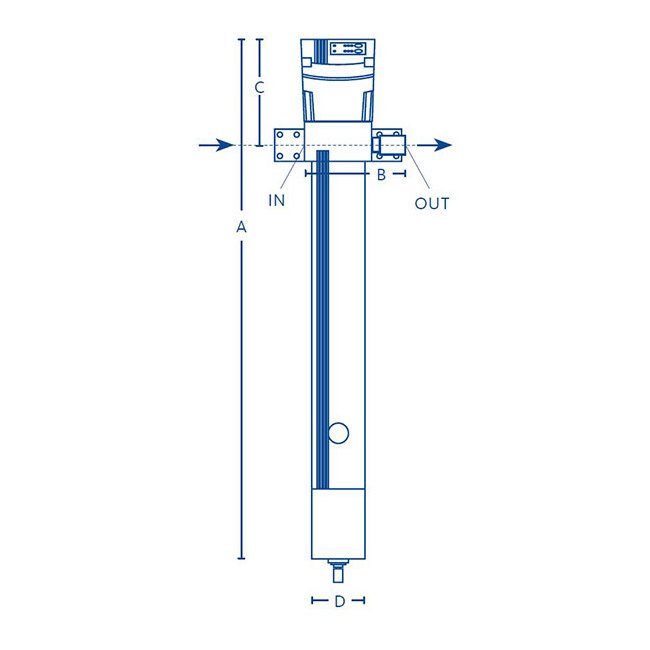

Specifications Dimension A
26.81 in
Specifications Dimension B
5.90 in
Specifications Dimension C
5.67 in
Specifications Dimension D
2.36 in
Specifications Flow Rate
16.73 scfm
Specifications Inlet Capacity For Purge Air 10
16.73 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
7.93 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
