DRYPOINT® MDi55 Membrane Dryer
DRYPOINT® MDi55 Membrane Dryer
SKU:CLE-dff420
Precisely control pressure dew point with DRYPOINT® MDi55 Membrane Dryer for reliable and efficient air treatment solutions.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
DRYPOINT® MDi55 Membrane Dryer
$1,299.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDi55 Membrane Dryer
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi55 ecoIntelligent Series Membrane Dryer is an advanced solution for precise pressure dew point control in air treatment systems. This membrane dryer features integrated pre-filtration of .01 μm, ensuring clean and dry air for various applications. With adjustable settings and a maintenance interval of 8,000 hours, this dryer offers reliability and efficiency. The unique Twist 45 Technology provides high performance, energy-saving operation, and a compact design suitable for a wide range of environments, making it an ideal choice for industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
3/4 in

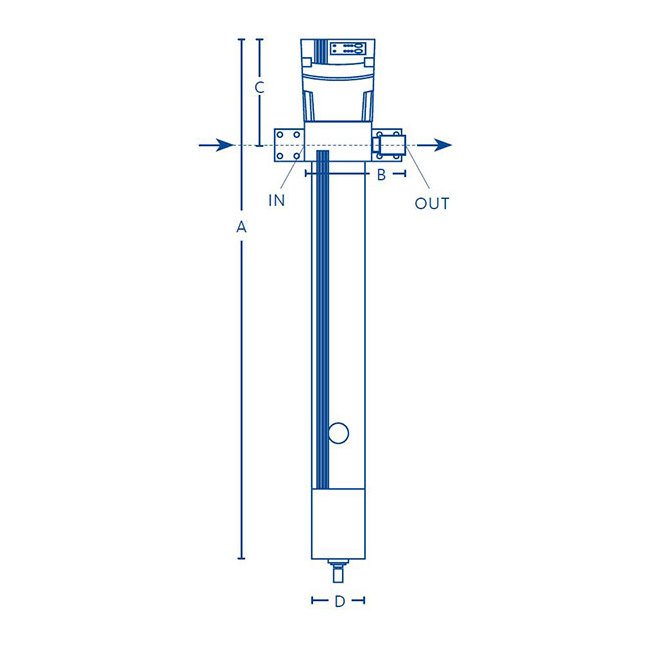

Specifications Dimension A
34.69 in
Specifications Dimension B
7.06 in
Specifications Dimension C
5.90 in
Specifications Dimension D
3.14 in
Specifications Flow Rate
52.63 scfm
Specifications Inlet Capacity For Purge Air 10
52.63 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
12.79 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
