DRYPOINT® MDp100 Membrane Air Dryer
DRYPOINT® MDp100 Membrane Air Dryer
SKU:CLE-49dc47
Enhance air quality with DRYPOINT® MDp100 Membrane Dryers with integrated pre-filtration. Reliable, energy-efficient, and maintenance-free.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
DRYPOINT® MDp100 Membrane Air Dryer
$1,899.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDp100 Membrane Air Dryer
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDp100 Premium Series Membrane Dryer from the DRYPOINT® M Plus line offers exceptional air treatment with integrated pre-filtration at 0.01 μm. Operating between an ambient temperature range of 34°F to 130°F, this dryer ensures clean, dry air with a maximum standard operating pressure of 140 psig. With innovative Twist 45 Technology, this maintenance-free system delivers reliable dew point suppression, energy efficiency, and a durable design suitable for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1 1/2 in
Specifications Differential Pressure
1.45 to 4.35 psid

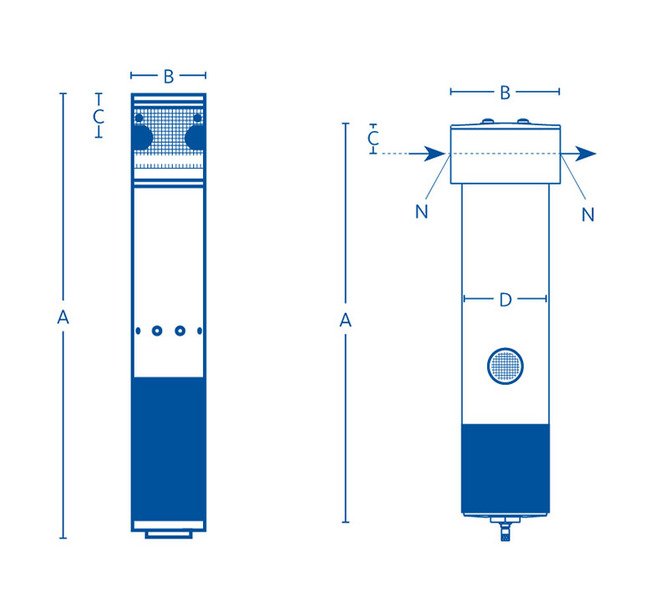

Specifications Dimension A
36.80 in
Specifications Dimension B
5.74 in
Specifications Dimension C
1.89 in
Specifications Flow Rate
100.77 scfm
Specifications Inlet Capacity For Purge Air 10
100.77 scfm
Specifications Inlet Capacity For Purge Air 28
35.30 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
22.44 lb
Standard Features And Benefits 0

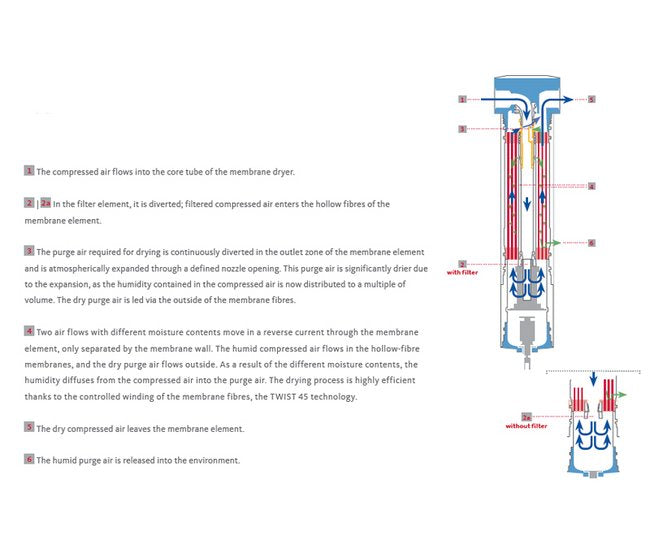

Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
