DS Series Less Indicator Deck Scale Platform
DS Series Less Indicator Deck Scale Platform
SKU:FLO-0bad6d
High-grade Deck Scale Platform with customizable options for precise weighing needs and legal-for-trade compliance.
Regular price
$4,599.99
Regular price
Sale price
$4,599.99
Unit price
per
Initiate Order
DS Series Less Indicator Deck Scale Platform
$4,599.99
Quantity: 1
Claim Your Seller Account
DS Series Less Indicator Deck Scale Platform
$4,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

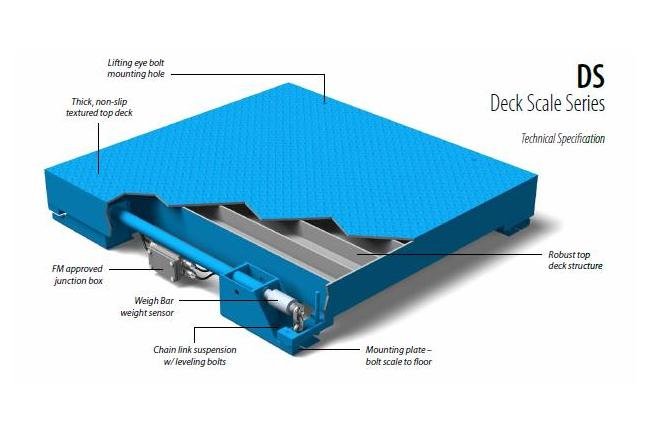

The DS Series Less Indicator Deck Scale Platform is a top-of-the-line solution for accurate and legal-for-trade weighing needs. It features a high-grade acrylic polyurethane or powder paint finished deck with a polycarbonate junction box, ensuring durability. The included 25' interface cable and weight sensors are designed to support a wide range of capacities, meeting CoC 88-221, Class III 5000 Divisions standards. Customizable with optional indicators and counting scales, this platform is available in non-standard sizes for tailored applications.
Product Specifications
Options Accessories
[15923-0192] - Platform lifting eye (must be requested at time of order) | Additional interface cable
Options Options
AWT05-508041 with 48" Kit (includes pair of forklift channels and mounting hardware) | AWT05-508042 with 60 Inch (in) Kit (includes pair of forklift channels and mounting hardware) | Forklift channel kit fits 5K, 10K and 20K capacities | Smooth top plate is same price as standard tread plate | Stainless steel junction box | When remote mounting the junction box from the scale, add charge for 25' Weigh Bar® cables
Specifications Capacity
20,000 lb | 10,000 kg
Specifications Height
8.00 in | 20 cm
Specifications Length
60 in
Specifications Model Number
DS6060-20
Specifications Notes
20,000 lb decks may be legally installed as a 10,000 lb capacity scale with 2 lb increments.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Shipping Weight
1,060 lb | 482 kg
Specifications Width
60 in
