Dual Bobbin Chassis Mount Power Transformers
Dual Bobbin Chassis Mount Power Transformers
SKU:POW-e992bb
Experience superior power transformation with our compliant dual bobbin chassis mount transformers from the World Series™.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Dual Bobbin Chassis Mount Power Transformers
$69.99
Quantity: 1
Claim Your Seller Account
Dual Bobbin Chassis Mount Power Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

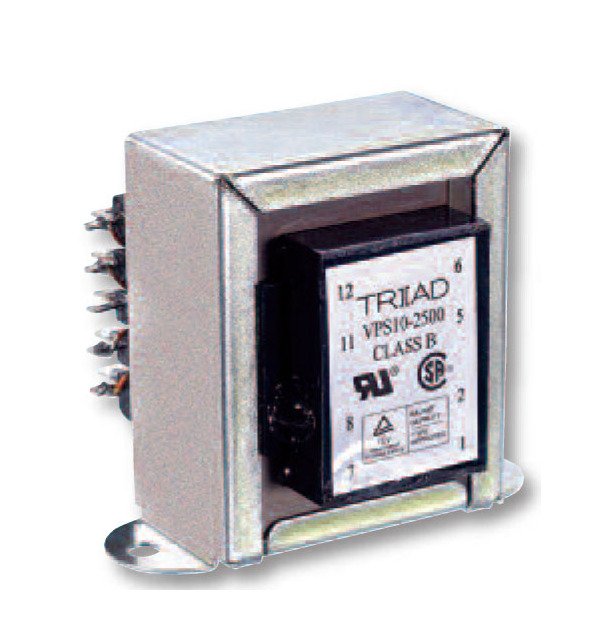

Experience superior power transformation with our Dual Bobbin Chassis Mount Power Transformers from the World Series™. Compliant with CSA, IEC, TUV, and UL standards, these transformers feature a dual bobbin design for enhanced insulation and reduced capacitance, ensuring optimal performance. Electrically isolated primary and secondary windings, along with quick-connect terminations, offer convenience and safety. Available in sizes ranging from 25 VA to 175 VA, these transformers provide reliable power solutions for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

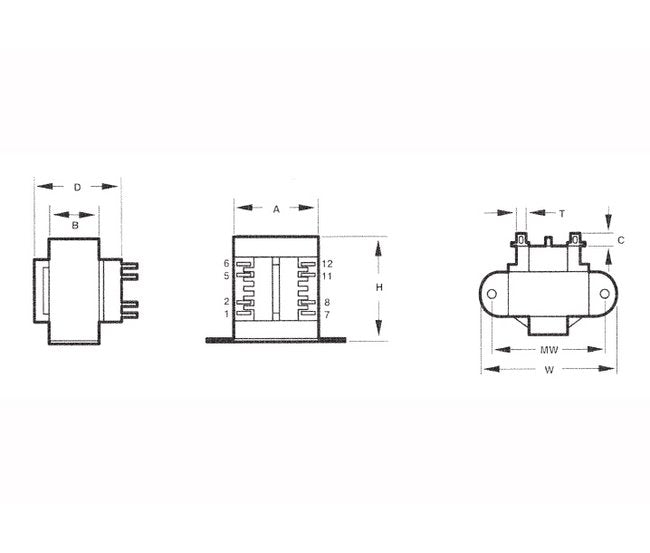

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
5.0 V at 8.6 A
Specifications Secondary Series
10.0 V CT at 4.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
