Dual Bobbin Chassis Mount Power Transformers
Dual Bobbin Chassis Mount Power Transformers
SKU:POW-bf0221
Reliable and compliant power transformers with dual bobbin design for efficient power distribution.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Bobbin Chassis Mount Power Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Dual Bobbin Chassis Mount Power Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

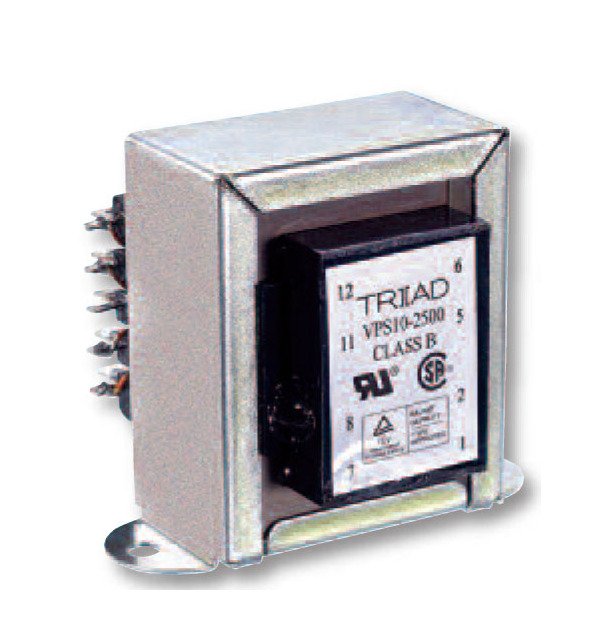

Experience reliable power transformation with our Dual Bobbin Chassis Mount Power Transformers from the World Series collection. Compliant with CSA, IEC, TUV, and UL standards, these transformers feature a dual bobbin design within an insulating shroud using high-temperature materials. With primary and secondary coils electrically isolated and 'quick connect' terminations, choose from sizes ranging 25 VA to 175 VA for efficient power distribution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

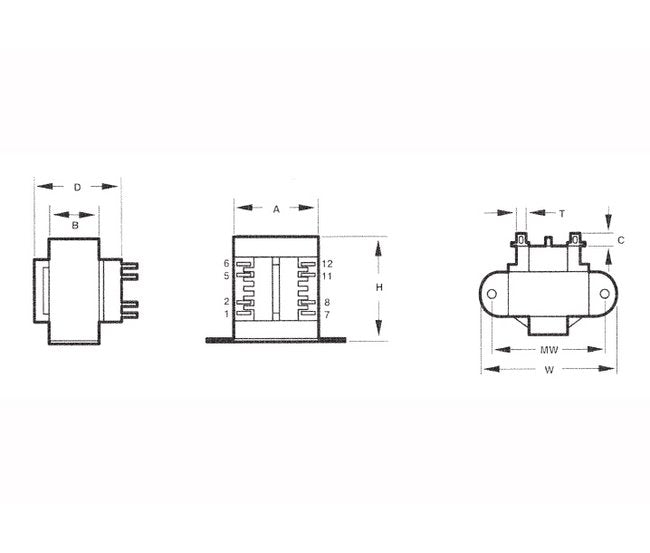

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 3.2 A
Specifications Secondary Series
16.0 V CT at 1.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
