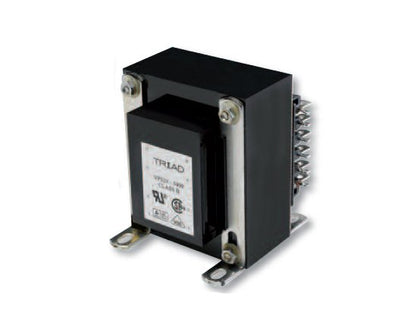

Dual Bobbin Chassis Mount Power Transformers
Dual Bobbin Chassis Mount Power Transformers
SKU:POW-a0668b
Meet rigorous international standards with Dual Bobbin Chassis Mount Power Transformers. Ensures safety and efficiency with dual bobbin design and 'quick connect' terminations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Dual Bobbin Chassis Mount Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Dual Bobbin Chassis Mount Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Bobbin Chassis Mount Power Transformers from the World Series⢠are meticulously designed to meet a range of international standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin configuration within an insulating shroud made of UL approved high-temperature material, these transformers eliminate the need for electrostatic shielding due to low capacitance between coils. Both primary and secondary coils are electrically isolated, offering enhanced safety. Ranging from 25 VA to 175 VA, these transformers come with 'quick connect' terminations for easy installation.
Product Specifications
Specifications Depth D
2 13/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
175 V·A
Specifications Height H
3 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 12.5 A
Specifications Secondary Series
28.0 V CT at 6.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.50 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
