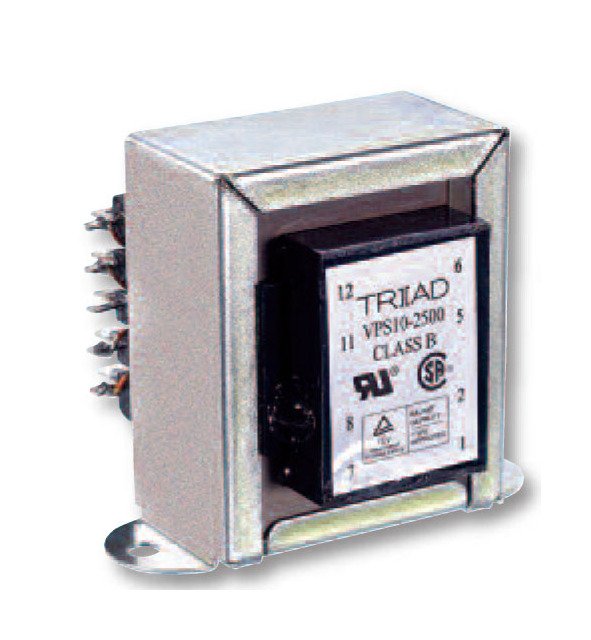

Experience reliable power transformation with our Dual Bobbin Chassis Mount Power Transformers from the World Series™. Designed to meet stringent U.S. and International standards including CSA, IEC, TUV, and UL requirements, these transformers feature a dual bobbin design for minimal capacitance between coils, eliminating the need for electrostatic shielding. The primary and secondary coils are electrically isolated for enhanced safety. Available in various sizes from 25 VA to 175 VA, with quick-connect terminations for convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Class 2/3 UL File: E65390

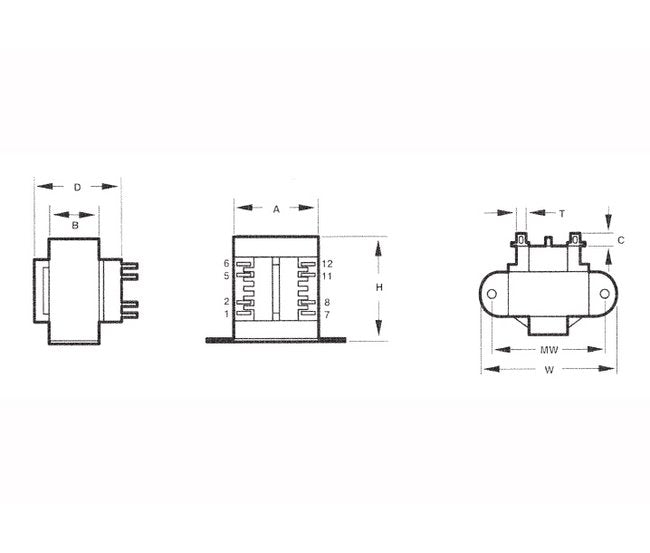

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 2.4 A
Specifications Secondary Series
36.0 V CT at 1.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
