Dual Bobbin High Isolation Power Transformers
Dual Bobbin High Isolation Power Transformers
SKU:POW-6a989f
Experience high isolation and reliability with our Dual Bobbin Power Transformers from the PC Mount World Series™. Compliant with top industry standards for consumer and institutional use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Dual Bobbin High Isolation Power Transformers
$45.99
Quantity: 1
Claim Your Seller Account
Dual Bobbin High Isolation Power Transformers
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

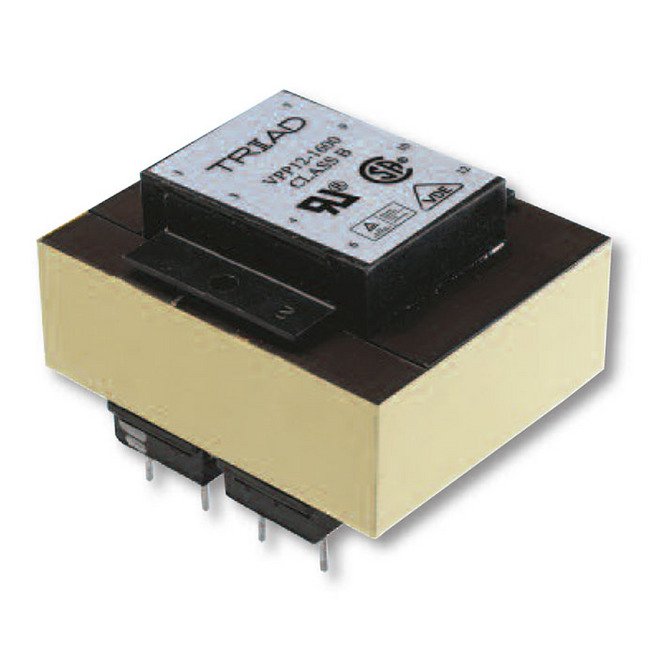

Experience superior power transformation with our Dual Bobbin High Isolation Power Transformers from the PC Mount World Series™. Featuring a high-temperature dual bobbin construction with insulating shroud exceeding UL flammability requirements, these transformers ensure very high isolation between windings and the core. With ratings ranging from 2.5 VA to 56.0 VA, these transformers offer precise pin placement for easy PC board mounting. Compliant with U.S. and International standards like CSA, IEC, TUV, and UL, these transformers are ideal for universal applications in consumer and institutional projects.
Product Specifications

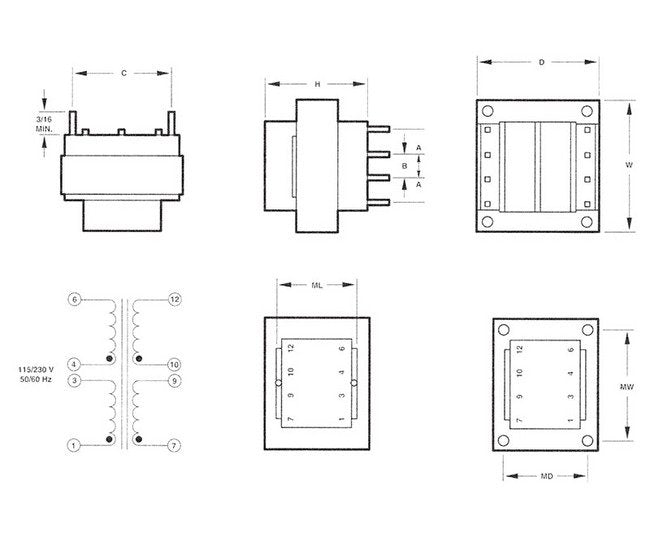

Specifications Depth D
2 1/2 in
Specifications Dimension A
0.600 in
Specifications Dimension B
0.300 in
Specifications Dimension C
1.900 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
1 13/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
2 in
Specifications Mounting Width
2 1/2 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 7.0 A
Specifications Secondary Series
16.0 V CT at 3.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.70 lb
Specifications Width W
3 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
