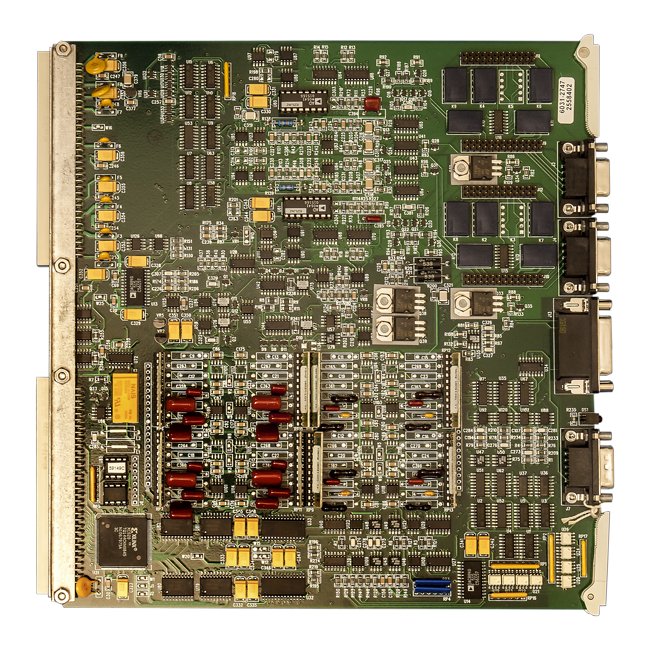

The Dual-Channel Programmable Signal Conditioning System, model 6131, is a high-performance amplifier and filter designed for precise signal processing in industrial and research environments. Featuring programmable gains from 1 to 5,000 with 0.05% resolution, automatic zero and balance, dual buffered 10 Volt analog outputs, and 50 kHz or 100 kHz bandwidth, this system ensures accurate data acquisition. With plug-in completion cards for various transducer types and calibration options, including bridge, RTD, and voltage transducers, the 6131 offers versatile compatibility. Its robust design, high common mode rejection, and low-pass filters make it ideal for applications requiring stable and reliable signal conditioning.
Product Specifications
Amplifier Analog Output Amplifier
Two outputs, one calibrated and one monitor. ±10 Volt full scale either filtered or wideband.Buffered Analog Output.
Amplifier Bandwidth
50 kHz (6031), 100 kHz (6031HF) (-3 dB) for gains to 1,000
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
60 dB plus gain in dB to 120 dB for balanced input and 100 dB for a 1,000 Ohm source unbalance, DC to 60 Hz.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.02% for 30 days, ±0.005%/ºC.
Amplifier Input Range
±2 mV to ±10 Volts.
Amplifier Linearity Amplifier
±0.01% for gains to 1,000, ±0.02% for gains above 1,000.
Amplifier Noise 10 Khz
2.0 µV RTI plus 0.3 mV RTO, RMS.
Amplifier Overload
Recovery time is 120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Slew Rate
5 V/µS
Amplifier Source Current
±5 nA, ±0.05 nA/ºC
Amplifier Zero Amplifier
Automatic zero to ±2 µV RTI or ±1.0 mV RTO whichever is greater.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO at constant temperature, ±1 µV RTI/ºC, ±0.2 mV RTO/ºC. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Bridge Series
Series calibration resistors, ±0.1%, 10 ppm/ºC.
Calibration Bridge Shunt
Two steps of bipolar shunt ±0.1%, 10 ppm/ºC.
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.02% accuracy. Attenuator output may be connected to bus for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity Digitizer
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±1-1/2 LSB (±0.004%)
Digitizer Digitizer Note
See Series 6000 to add the following onboard digitizing capability.
Excitationtransducer Power Auxiliary
Resistor settable +5 to +25 Volts is available on certain completion cards. Regulation is ±1%.
Excitationtransducer Power Compliance Constant Current
0.1 to 10 V
Excitationtransducer Power Current Constant Voltage
50 mA limited to 70 mA maximum. No damage for continuous short.
Excitationtransducer Power Excitation Off
Removes excitation from the transducer without changing the setting.
Excitationtransducer Power Iepe 6031 Cc1
Nominal 6 mA, 24 Volt compliance. User settable from 1 to 20 mA.
Excitationtransducer Power Monitor Analog
Test points for excitation and sense.
Excitationtransducer Power Monitor Digital
Excitation voltage, 0.5 V/V ±0.05% (0.1 V/V ±2% for Auxiliary) or current, 0.1 V/mA ±0.1%.
Excitationtransducer Power Noise Constant Current
2 µA or 100 µV RMS, DC to 20 kHz.
Excitationtransducer Power Noise Constant Voltage
100 µV RMS, DC to 100 kHz
Excitationtransducer Power Output Range Constant Current
Programmable 0.1 mA to 50 mA with 12 µA resolution.
Excitationtransducer Power Regulation Constant Current
±0.01% or ±0.1 µA for ±10% line voltage change.
Excitationtransducer Power Regulation Constant Voltage
Each channel individually regulated, ±0.01% for ±10% line voltage change and no-load to full load.
Excitationtransducer Power Rmt Sensing
Full excitation at the transducer with up to 1 Volt line loss.
Excitationtransducer Power Stability Constant Current
±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/ºC.
Excitationtransducer Power Stability Constant Voltage
±0.01% for 30 days. Temperature coefficient less than ±0.005 %/ºC.
Excitationtransducer Power Voltage Constant Voltage
Programmable from 0 to 10.24 Volts with 2.5 mV resolution.
Overview Analog Bandwidth
50 kHz | 100 kHz
Overview Excitationtransducer Power
Current | Voltage
