Enhance your industrial machinery with our Dual Flange CB Elements, designed for doubling torque capacity by bolting two elements together. Available in sizes 12CB350 through 45CB525, our elements are engineered to deliver a torque rating of 344,000 lb·in | 38,900 Nm, ensuring optimal performance at a maximum speed of 800 rpm. With industry-leading features like low centrifugal loss constant, high inertia, and durable construction, these elements are ideal for applications requiring high torque and reliability. Benefit from a friction area of 1100 in², precise dimensions for seamless mounting, and a weight of 366 lb, making them a robust choice for your clutch and brake needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.10.00 degrees for elements with one air inlet. 5.00 degrees for elements with two or four air inlets.
Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
700 in³ | 11.5 dm³
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
3.31 E-06 bar/rpm2 | 48 E-06 psi/rpm2

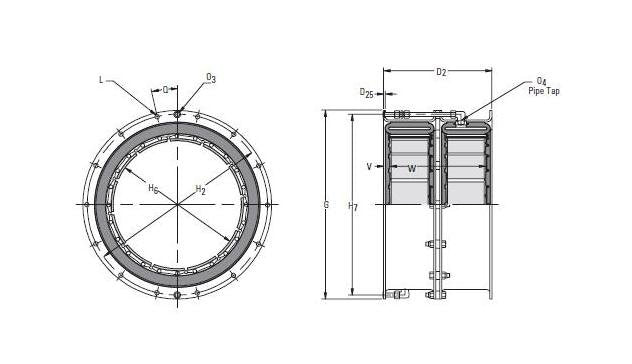

Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
44.625 in | 1133.5 mm
Specifications Dimension H2
43.125 in | 1095.4 mm
Specifications Dimension H6
36.19 in | 919 mm
Specifications Dimension H7
43.25 in | 1099 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
1100 in² | 7095 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
1052 lb·ft² | 44.18 kg·m²
Specifications Maximum Speed
800 rpm
Specifications Minimum Drum Diameter
35.81 in | 910 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
44
Specifications Number Of Mounting Holes
18
Specifications Size
36CB525
Specifications Torque Rating 75 Psi55 Bar
344000 lb·in | 38900 Nm
Specifications Weight
366 lb | 166 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
