Upgrade your machinery with our Dual Flange CB Elements, sizes 12 to 45, featuring the ability to double torque capacity by bolting two elements together. With a torque rating of up to 422,000 lb·in and a maximum speed of 750 rpm, these elements offer exceptional performance and durability. The friction area of 1220 in² ensures reliable operation, while the compact design allows for easy installation and maintenance. Whether for industrial or institutional use, these elements guarantee superior efficiency and longevity.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
760 in³ | 12.5 dm³
Specifications Angle Q
9.000 º
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
3.59 E-06 bar/rpm2 | 52 E-06 psi/rpm2

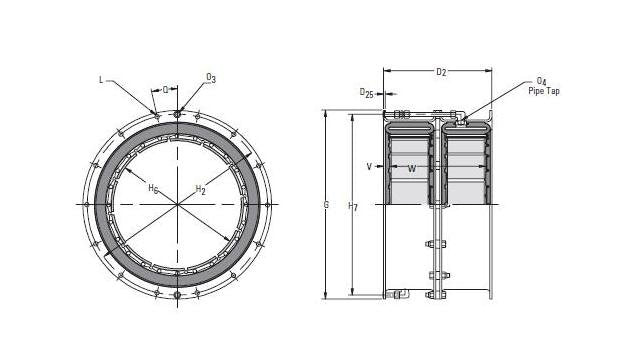

Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
48.625 in | 1235.1 mm
Specifications Dimension H2
47.125 in | 1197 mm
Specifications Dimension H6
40.19 in | 1021 mm
Specifications Dimension H7
47.25 in | 1200 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
1220 in² | 7869 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
1502 lb·ft² | 63.08 kg·m²
Specifications Maximum Speed
750 rpm
Specifications Minimum Drum Diameter
39.81 in | 1011 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
48
Specifications Number Of Mounting Holes
20
Specifications Size
40CB525
Specifications Torque Rating 75 Psi55 Bar
422000 lb·in | 47700 Nm
Specifications Weight
413 lb | 187 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
