Upgrade your equipment with our Dual Flange CB Elements, where two dual flanged elements can be securely bolted together to create a dual element with twice the torque capacity of a single element. Available in sizes ranging from 12CB350 to 45CB525, these elements boast a Torque Rating of 274,000 lb·in, Maximum Speed of 900 rpm, and a robust design to deliver reliable performance. With a focus on durability and efficiency, these elements are a perfect fit for heavy-duty applications requiring exceptional torque capabilities.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.10.00 degrees for elements with one air inlet. 5.00 degrees for elements with two or four air inlets.
Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
620 in³ | 10.2 dm³
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.97 E-06 bar/rpm2 | 43 E-06 psi/rpm2

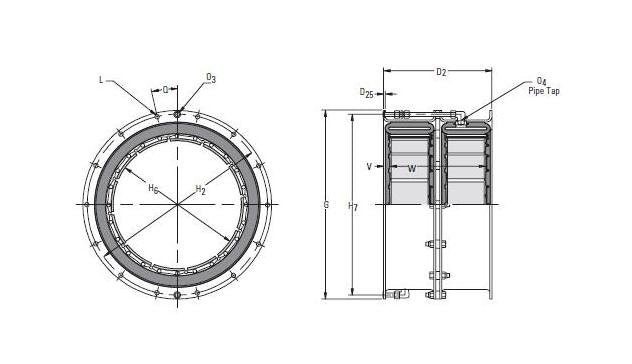

Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
40.000 in | 1016 mm
Specifications Dimension H2
38.750 in | 984.3 mm
Specifications Dimension H6
32.19 in | 818 mm
Specifications Dimension H7
38.50 in | 978 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
966 in² | 6231 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
736 lb·ft² | 30.91 kg·m²
Specifications Maximum Speed
900 rpm
Specifications Minimum Drum Diameter
31.81 in | 808 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
38
Specifications Number Of Mounting Holes
18
Specifications Size
32CB525
Specifications Torque Rating 75 Psi55 Bar
274000 lb·in | 31000 Nm
Specifications Weight
321 lb | 145 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
