Upgrade your industrial machinery with our Dual Flange CB Elements. Bolt together two dual flanged elements to double the torque capacity. This industrial-grade solution, available in sizes 12CB350 to 45CB525, offers unmatched durability, efficient performance at up to 1050 rpm, and precise engineering for heavy-duty applications. With a torque rating of 184800 lb·in | 20900 Nm and compliance with federal procurement standards, these elements ensure reliability and strength in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

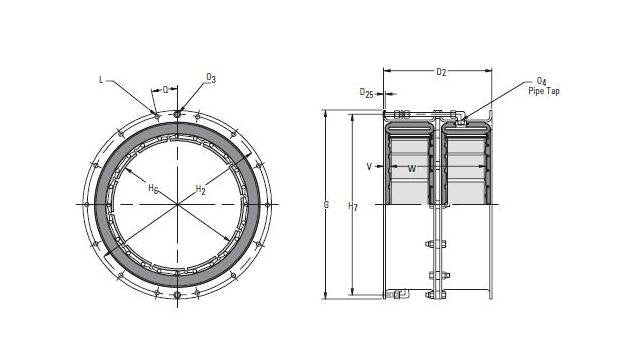

Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
520 in³ | 8.53 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.35 E-06 bar/rpm2 | 34 E-06 psi/rpm2
Specifications Dimension D2
14.25 in | 362 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
34.000 in | 863.6 mm
Specifications Dimension H2
32.750 in | 831.9 mm
Specifications Dimension H6
26.19 in | 665 mm
Specifications Dimension H7
32.50 in | 826 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
808 in² | 5212 cm²
Specifications Friction Shoe Width W
12.56 in | 319 mm
Specifications Inertia
432 lb·ft² | 18.14 kg·m²
Specifications Maximum Speed
1050 rpm
Specifications Minimum Drum Diameter
25.81 in | 656 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
32
Specifications Number Of Mounting Holes
16
Specifications Size
26CB525
Specifications Torque Rating 75 Psi55 Bar
184800 lb·in | 20900 Nm
Specifications Weight
272 lb | 123 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
