Dual Flange CB Elements Set, Sizes 12-45

Dual Flange CB Elements Set, Sizes 12-45

CLU-d89bdf

Enhance torque capacity with our Dual Flange CB Elements Set in sizes 12-45, perfect for heavy-duty applications.

$1,999.99
$1,999.99
Sale

Initiate Order

Dual Flange CB Elements Set, Sizes 12-45

Dual Flange CB Elements Set, Sizes 12-45

$1,999.99

Quantity: 1

Claim Your Seller Account

Dual Flange CB Elements Set, Sizes 12-45

Dual Flange CB Elements Set, Sizes 12-45

$1,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dual Flange CB Elements Set offers unmatched torque capacity by bolting two dual flanged elements together. Available in sizes 12CB350 through 45CB525, it delivers 88000 lb·in torque, operates at a maximum speed of 1400 rpm, and features a durable construction with precise dimensions for optimal performance. Ideal for heavy-duty applications requiring reliable braking and clutching mechanisms.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

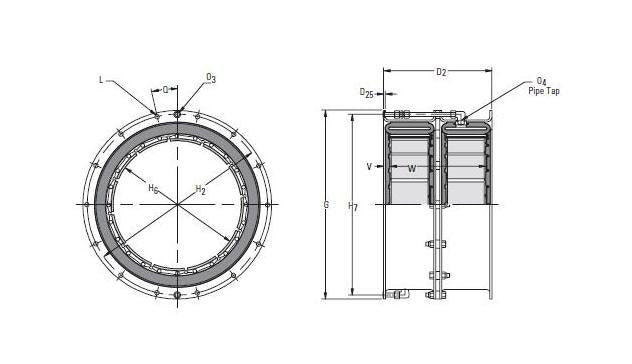

Product Specifications

Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
320 in³ | 5.25 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.59 E-06 bar/rpm2 | 23 E-06 psi/rpm2
Specifications Dimension D2
13.63 in | 346 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
25.500 in | 647.7 mm
Specifications Dimension H2
24.375 in | 619.1 mm
Specifications Dimension H6
18.19 in | 462 mm
Specifications Dimension H7
24.38 in | 619 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
524 in² | 3380 cm²
Specifications Friction Shoe Width W
12.00 in | 305 mm
Specifications Inertia
144 lb·ft² | 6.05 kg·m²
Specifications Maximum Speed
1400 rpm
Specifications Minimum Drum Diameter
17.87 in | 454 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
22
Specifications Number Of Mounting Holes
12
Specifications Size
18CB500
Specifications Torque Rating 75 Psi55 Bar
88000 lb·in | 9940 Nm
Specifications Weight
166 lb | 75 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
