The Dual Flange CB Elements are designed to double the torque capacity by securely bolting two dual flanged elements together. Ranging in sizes from 12CB350 to 45CB525, these elements offer a torque rating of up to 26600 lb·in, ensuring reliable performance in demanding industrial applications. With a maximum speed of 1800 rpm, low centrifugal loss constant, and sturdy construction, these elements deliver exceptional efficiency and durability. The design features a substantial friction area, customizable air tube cavity, and precise dimensions for seamless integration into existing systems. Trusted by institutions and government agencies, these elements meet stringent procurement standards and industry-specific certifications.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
160 in³ | 2.62 dm³
Specifications Angle Q
12.857 º
Specifications Bolt Hole Size L
0.375 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.83 E-06 bar/rpm2 | 12 E-06 psi/rpm2

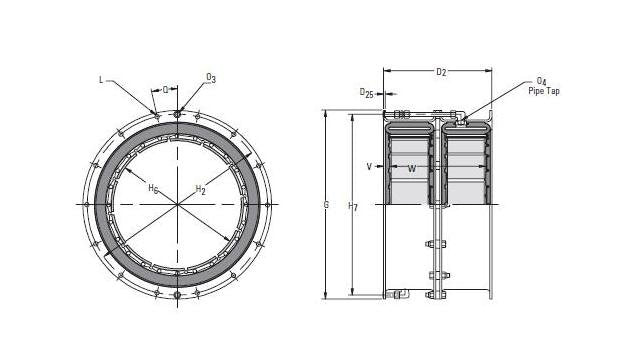

Specifications Dimension D2
10.13 in | 257 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
17.625 in | 447.7 mm
Specifications Dimension H2
16.875 in | 428.6 mm
Specifications Dimension H6
12.13 in | 308 mm
Specifications Dimension H7
16.88 in | 429 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
256 in² | 1651 cm²
Specifications Friction Shoe Width W
8.75 in | 222 mm
Specifications Inertia
25 lb·ft² | 1.05 kg·m²
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
11.9 in | 302 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
24
Specifications Number Of Mounting Holes
14
Specifications Size
12CB350
Specifications Torque Rating 75 Psi55 Bar
26600 lb·in | 3010 Nm
Specifications Weight
62 lb | 28 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
