Dual Flange Instrumentation Manifold Valve - SM5V Series
Dual Flange Instrumentation Manifold Valve - SM5V Series
SKU:SM5-be8d35
High-performance SM5V Series Dual Flange Instrumentation Manifold Valve for precise pressure control in industrial settings.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Dual Flange Instrumentation Manifold Valve - SM5V Series
$329.99
Quantity: 1
Claim Your Seller Account
Dual Flange Instrumentation Manifold Valve - SM5V Series
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM5V Series Direct Mounting Horizontal Dual Flange Style Instrumentation Manifold Valve is a robust solution designed for critical pressure management. With a Pressure Rating of 6000 psig and Temperature up to 1200 ºF, this valve ensures reliable performance in demanding industrial environments. Featuring leak rates as low as 0.1 cm³/min and durable Flange connections, it offers superior reliability and precision. Compliant with Federal/DoD procurement standards and industry certifications, this valve meets the stringent requirements of institutional buyers.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
Flange
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC

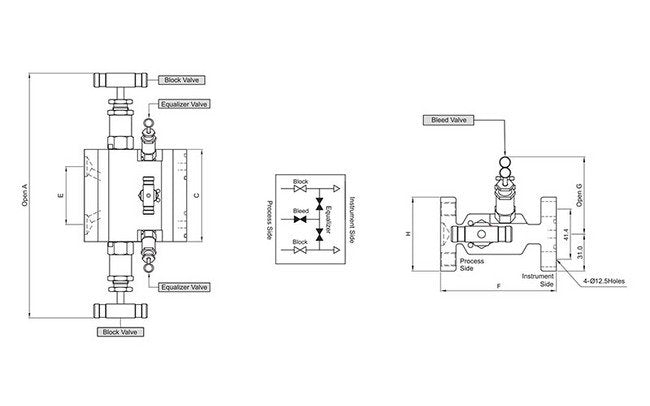

Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
32.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
24.0 mm
Weight Dimension Dimension E
54.0 mm
Weight Dimension Dimension F
96.4 mm
Weight Dimension Dimension G
69.0 mm
Weight Dimension Dimension H
62.0 mm
