Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
SKU:01C-366300
Dual Locking Board Support for circuit board stability, .098 holes each end, Nylon 66 material, UL File# E41938, ASTM D 4066, RoHS compliant, temp range: -40 to 185 F
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance stability and secure your circuit boards with the Dual Locking Board Support from the 50 Series. Featuring a teardrop head design with .098 diameter holes on both ends, these supports are made of Nylon 66 UL94V-2 material for durability. Each pack contains 1000 supports, ensuring ample supply for your project needs. With compliance to UL File# E41938, ASTM D 4066, and RoHS standards, these board supports offer reliability and safety. The supports are designed to withstand temperatures ranging from -40 to 185 F, making them suitable for a variety of environments.
Product Specifications

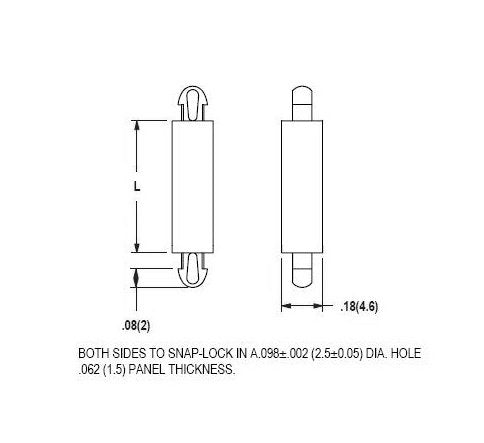

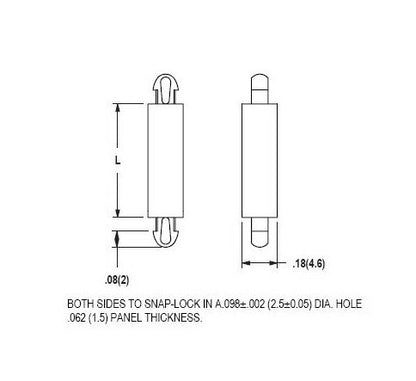

Specifications Dim L
.394 (10mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
