Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
SKU:01C-23dd58
Secure and durable dual locking board support for circuit boards with .098 holes, RoHS compliant and suitable for various temperature ranges.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

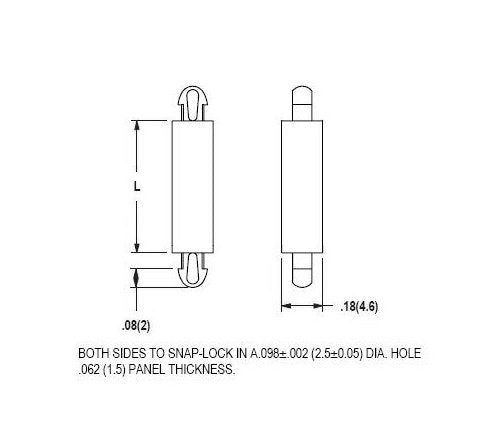

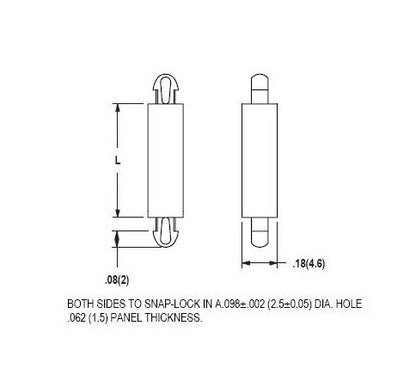

The 50 Series Dual Locking Board Support features a teardrop head design with a .098 diameter hole on both ends, providing secure fastening for circuit boards. Made of Nylon 66 UL94V-2 material, this support is durable and RoHS compliant. With a temperature range of -40 to 185 F, it ensures reliability in various environments. Measuring .709 inches in length and suitable for panel thickness of .062 inches, it offers precise support for electronic assemblies.
Product Specifications
Specifications Dim L
.709 (18mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
