Dual Locking Board Support .100 Board Hole x .100 Chassis Hole - Pack of 1000
Dual Locking Board Support .100 Board Hole x .100 Chassis Hole - Pack of 1000
SKU:01C-75427c
Dual locking board support with teardrop head design. Nylon 66 UL94V-2 material, RoHS compliant, temperature range -40 to 185F, pack of 1000.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

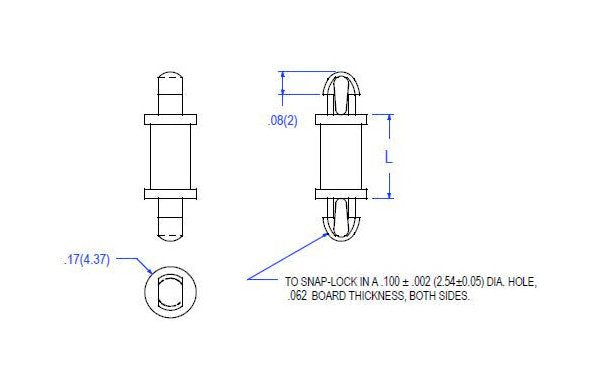

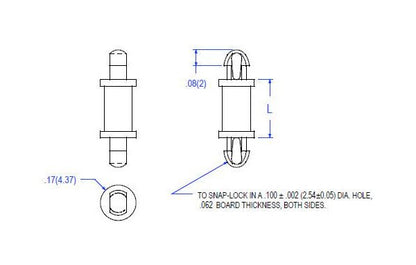

The 28 Series Dual Locking Board Support features a teardrop head design with a .100 diameter mounting hole at both ends. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and UL listed under file number E41938ASTM. It offers a temperature range of -40 to 185F (-40 to 85C), ensuring durability in various environments. With a panel thickness of .064 inches and a hole diameter of .100 inches, this support provides secure mounting for circuit boards. Upgrade to UL94V-0 material by adding 'X' to the end of the part number.
Product Specifications
Specifications Dim D
.172 (4.4) inches (mm)
Specifications Dim L
.125 (3.2) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
Specifications Remarks Hole Diameter
Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
