Dual Locking Board Support .125 Board Hole x .125 Chassis Hole

Name: Dual Locking Board Support .125 Board Hole x .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-e58f66
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-e58f66

Dual locking board support with .125 board hole x .125 chassis hole, made of durable Nylon material. RoHS compliant and meets ASTM standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

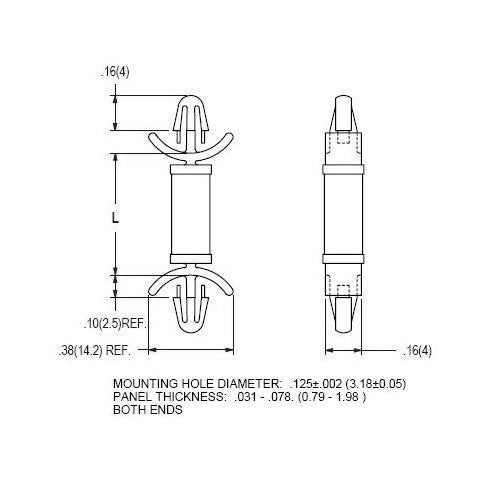

The Dual Locking Board Support from our 52 Series is a reliable solution for securing circuit boards. Featuring a .125-inch (3.18mm) mounting hole diameter on both ends, this support provides easy installation by hand. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it offers excellent durability and is releasable for repairs. With a temperature range of -40 to 185F (-40 to 85C), this support is RoHS compliant and meets ASTM D 4066 and PA0113 standards, ensuring quality and reliability for your applications.

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.18) inches (mm)

Specifications Dim L

.437 (11.1) inches (mm)

Specifications Panel Thickness

.031-.078 (.8-.1.98) Both Ends inches (mm)
